Product Description:

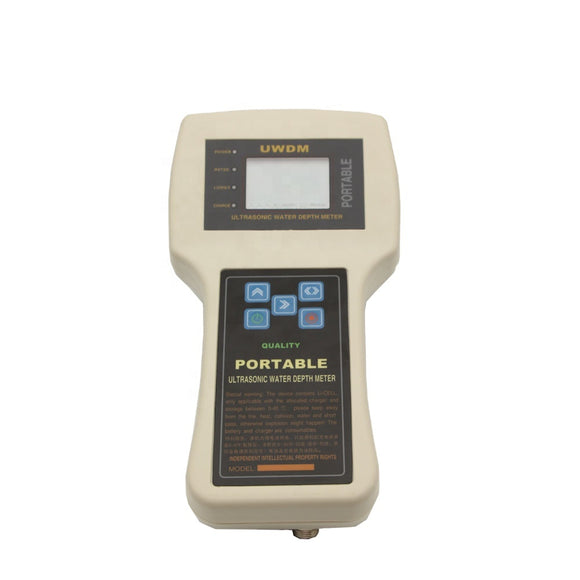

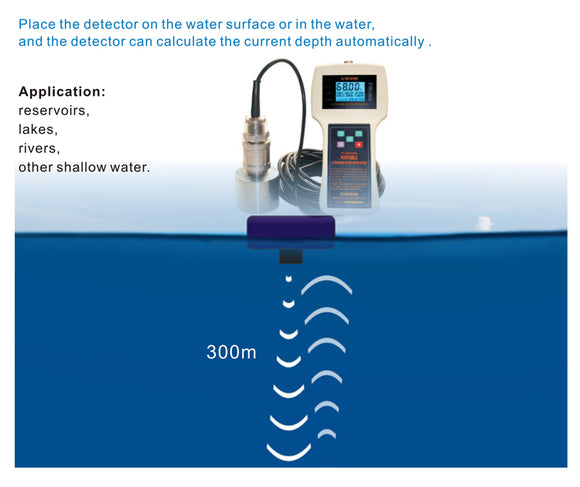

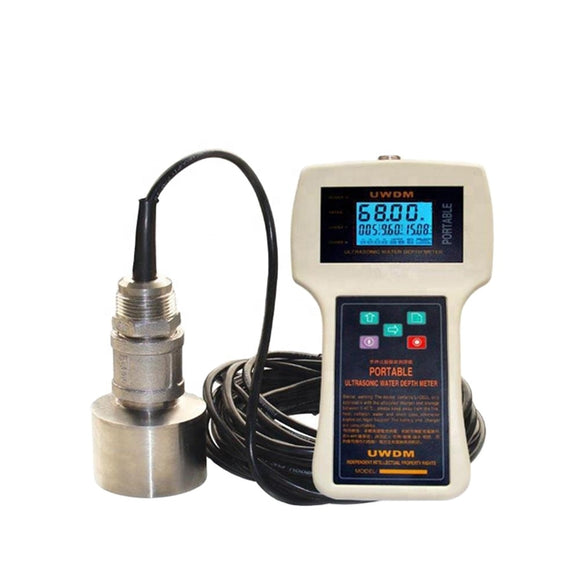

The GUT775 Handheld Ultrasonic Depth Meter is a portable device designed for measuring water depth in environments such as:
-
Reservoirs
-
Lakes
-
Rivers
-
Shallow seas
-
Hydropower plants
-
Other freshwater and seawater applications
Key Specifications:
| Parameter | Details |
|---|---|
| Range | Up to 100 m (customizable) |
| Blind Zone | <500 mm (depends on range) |
| Minimum Depth (Draught) | 500 mm |
| Accuracy | ±0.5% F.S. (default) |
| Output Signal | 4–20 mA, RS485 |
| Display | Multi-information large LCD |
| Keyboard | Five light touch buttons |
| Operating Temperature | Sensor: 0–40 °C; Instrument: -10–50 °C |
| Working Power | Built-in rechargeable lithium battery (approx. 6h standby) |
| Cable | 10 m standard down-lead cable |
| Environment | Suitable for freshwater and seawater |
| Protection Rating | Sensor: IP68 |
| Mounting Method | Hand-held instrument; sensor threaded mount |
Features:
-
Long service life
-
High reliability and precision
-
Portable and user-friendly
-
Ideal for hydrographic and environmental monitoring
Applications:
-
Hydrographic surveying
-
Water depth mapping in reservoirs, rivers, and lakes
-
Hydropower plants and coastal engineering surveys
Dimensions (Sensor):
-
Length: 117 mm
-
Diameter: 64 mm (bottom), 33 mm (top)
-
Display unit size: 115 mm (width) × 270 mm (height)
