Product Description

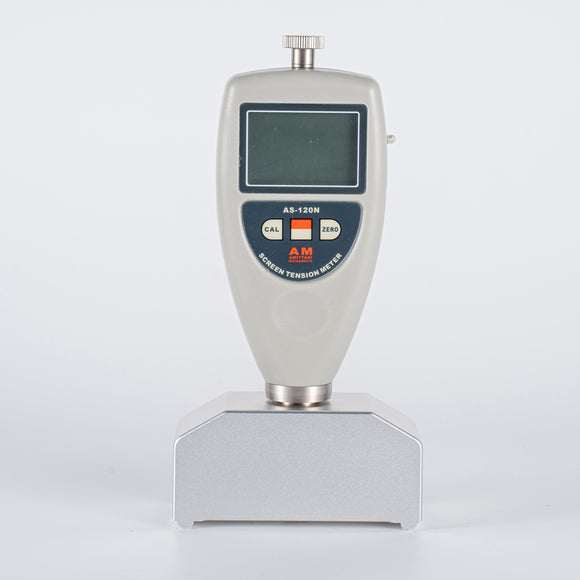

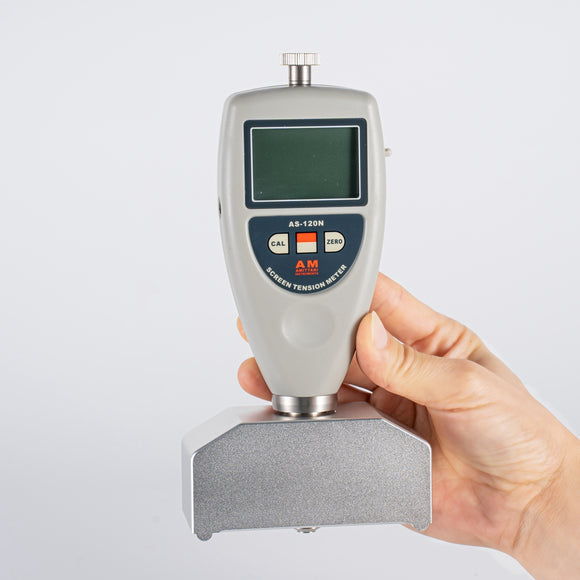

The Screen Tension Tester is a versatile tool designed for measuring tension in general wire mesh and steel mesh. It is particularly suitable for screen printing and screen stencil measurement, offering high accuracy and precision. This device serves as an essential tool in the production of precise screens and steel mesh.

Product Features

• LCD digital display: The tester features an easy-to-read LCD screen, eliminating reading errors and ensuring accurate measurements.
• Unit conversions: It allows for convenient unit conversions between N/cm (Newton per centimeter) and kg/cm (kilogram per centimeter), catering to different measurement preferences.
• USB data output: The device is equipped with a USB port for data output, enabling easy connection to a computer for data analysis and storage.
• Bluetooth data output: It also provides the option of Bluetooth data output, allowing for wireless transmission of measurement data.

Product Parameters

• Measurement Range: 7~40 N/cm
• Display Range: 0~50 N/cm
• Resolution: 0.1
• Fiducial Error: 5%
• Operating Environment: Temperature: 0 ~ 40 ?, Humidity: 10 ~ 90% RH
• Power Supply: 4x1.5v AAA (UM-4) battery
• Size: 175x95x40mm
• Weight: 490g (Batteries not included)

Product Accessories

Standard Accessories:

• Main Unit

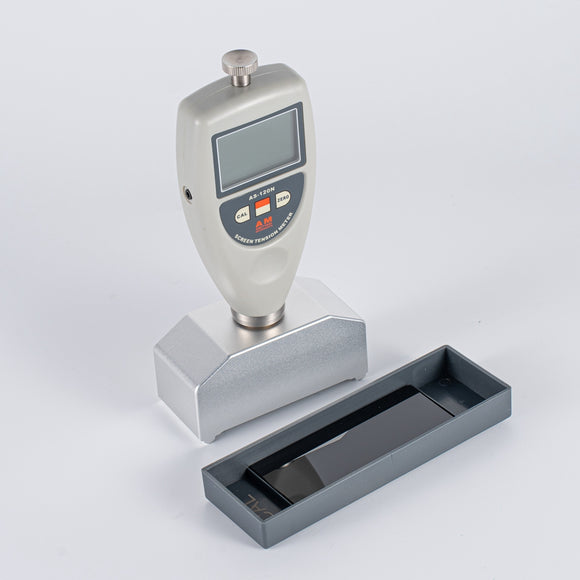

• Calibration Block

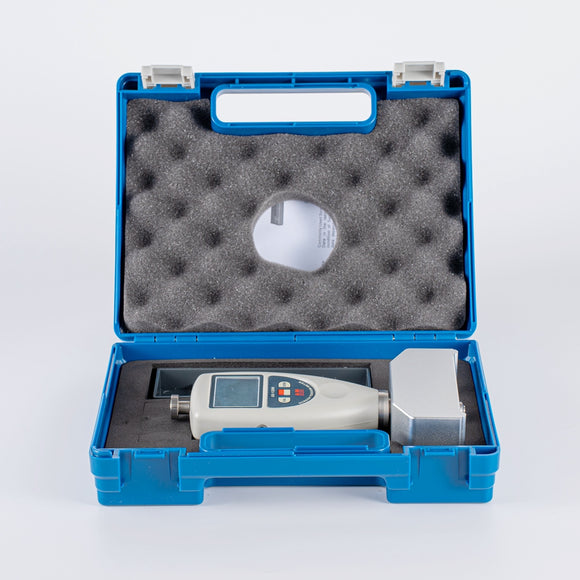

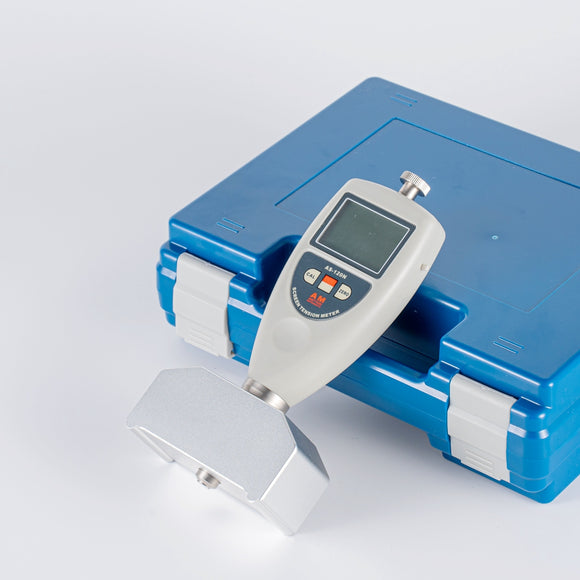

• Carrying Case
• Operation Manual

Optional Accessories:

• USB/RS232C data output
• Bluetooth data output

Printing Task and Determination of Screen Tension

The Screen Tension Tester is useful for various printing tasks, with different tension requirements based on the type of wire mesh used. The following are recommended tension values (in N/cm) for specific printing tasks:

• Ultra High Tension Wire Mesh: Circuit Board and Measuring Scale (16~20 N/cm)
• High Strength Wire Mesh: Multicolor and Four-Color Printing (16~20 N/cm)
• High Precision Ultra Fine Wire Mesh: High Precision Multi-Layer Circuit Printing (25~30 N/cm)
• High Precision Polyester Net (Standard Monofilament): Multicolor and Four-Color Printing (Manual Printing) (8~12 N/cm)
• Ordinary Polyester Net (Standard Monofilament): Flat Object (8~12 N/cm)
• Nylon Mesh: Curve Surface or Rough Object (8~12 N/cm)
