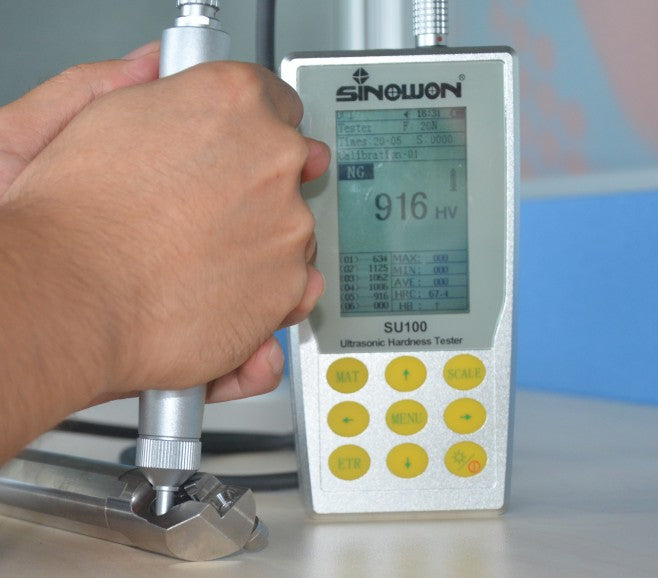

Manual Ultrasonic Hardness Tester SU-100
SU-100 Introduction:
● At present, there are kinds of methods for hardness measurement, commonly used like Brinell, Rockwell, Vickers, Leeb, etc. while the disadvantages are obvious for the above hardness measurement.
● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Birnell, Rockwell and Vickers scales.
● Ultrasonic hardness tester SU-100 apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester SU-100 is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Specifications:
| Commodity | Ultrasonic Hardness Tester |
| Model | SU-100 |
| Code# | 882-121 |
| Loading Force | 2Kgf Manual Probe HP-2K |
| Indenter | 136°Vickers Diamond Indenter |
| Measuring Range |
HB: 85-650; HV 80-1599; HRC 20-70; HRB: 41-100; HRA: 61-85.6 HS: 34.2-97.3; Mpa: 255-2180N/mm |
| Measuring Accuracy | HV: ±3%HV; HRC: ±1.5HRC; HB: ±3%HB; HLD: ±5HLD; |
| Measuring Direction | Support 360° |
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale | HV,HB,HRC, HLD |
| Data Display | Loading force, Testing-times, Testing result, Average, Maximum, Minimum, Deviation and Conversion scale. |
| Hardness Indication | LCD display |
| Operating Environment | Temperature: -10℃~50℃; Humidity: 30%~80%R.H |
| Operating Voltage | DC 6V |
| Instrument Dimensions | 60*80*31mm |
| Net Weight | Approximate 500g(Without probe) |

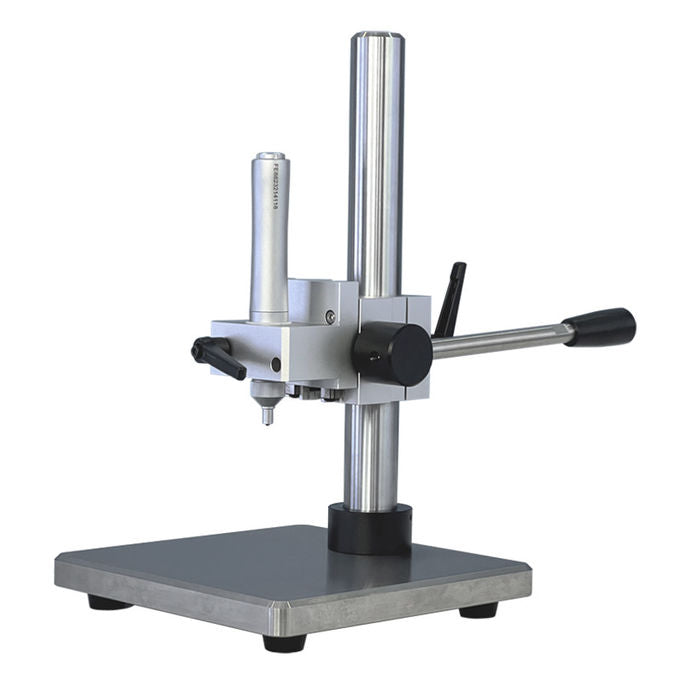

Ultrasonic Hardness Tester Manual Probe
Features:
Manual Probe Specifications:
| Probe Type | HP-1K | HP-2K | HP-5K | HP-10K |
| Code# | 882-311 | 882-321 | 882-331 | 882-341 |
| Remark | Optional | Standard | Optional | Optional |
| Loading force | 10N | 20N | 50N | 98N |
| Diameter | 21mm | 21mm | 21mm | 21mm |
| Length | 154mm | 154mm | 154mm | 154mm |
| Oscillating Rod Diameter | 2.4mm | 2.4mm | 3mm | 3mm |
| Roughness of measuring surface | Ra<3.2um | Ra<5um | Ra<10um | Ra<15um |
| Min weight of test material | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
| Min thickness of test material | 2mm | 2mm | 2mm | 2mm |

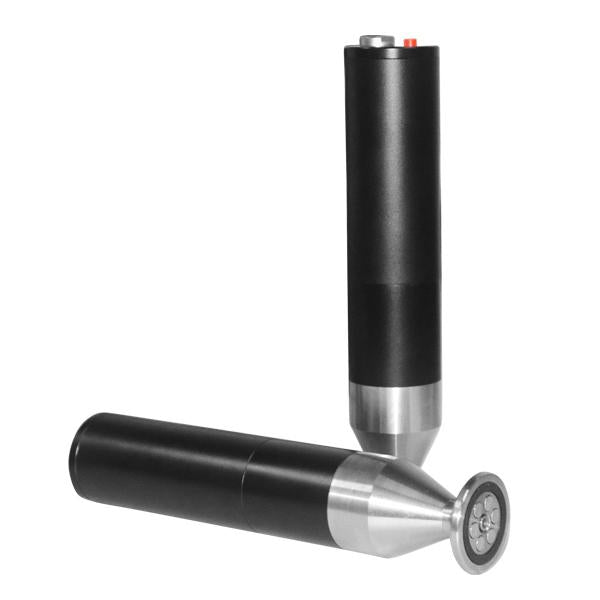

Ultrasonic Hardness Tester Motorized Probe:
Features:
Motorized Probe Specifications:
| Probe Type | MP-300 | MP-500 | MP-800 | MP-1000 | MP-2000 |
| Code# | 882-221 | 882-231 | 882-241 | 882-251 | 882-261 |
| Remark | Optional | Optional | Optional | Optional | Optional |
| Loading force | 3N | 5N | 8N | 10N | 20N |
| Diameter | 46mm | 46mm | 46mm | 46mm | 46mm |
| Length | 200mm | 200mm | 200mm | 200mm | 200mm |
| Oscillating Rod Diameter | 3.7mm | 3.7mm | 3.7mm | 3.7mm | 3.7mm |
| Min weight of test material | 0.3kg | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
| Min thickness of test material | 2mm | 2mm | 2mm | 2mm | 2mm |

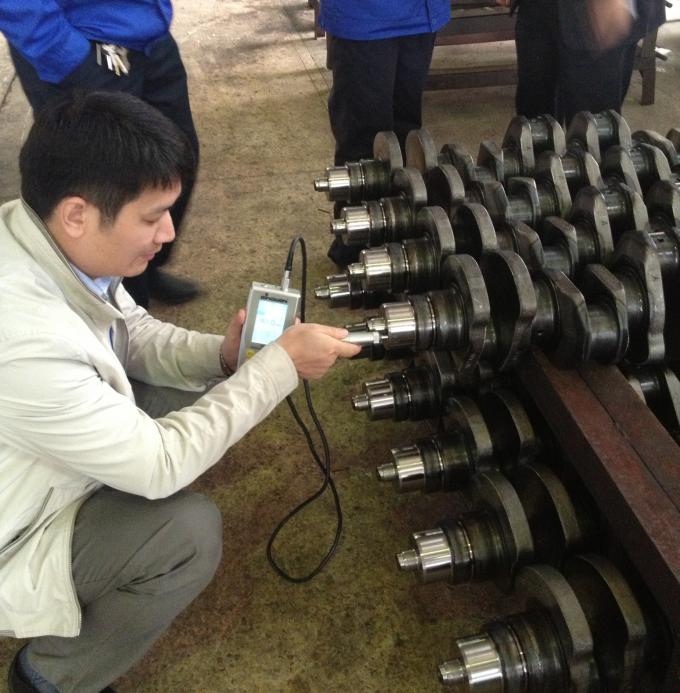

Portable Universal Dynasonic Hardness Tester Application:
