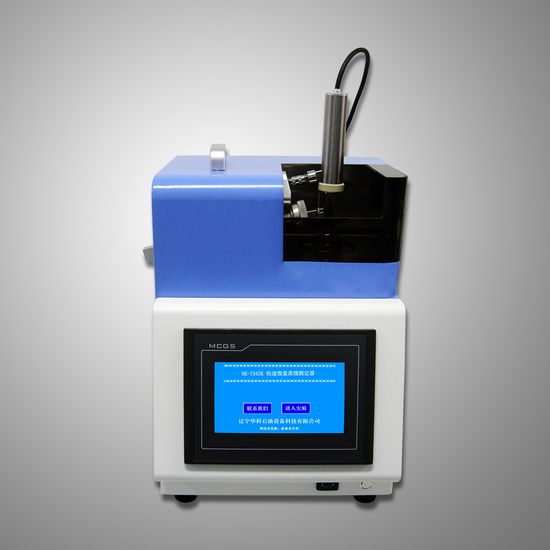

The HK-7345K is a rapid micro-distillation tester for determining the atmospheric distillation characteristics of gasoline, diesel and aviation fuels from a small sample.
Key features
- 7-inch colour touch screen
- Automatic test sequence and heating-furnace positioning
- 10 mL sample requirement
- Complete test in approximately 15 minutes
- Built-in pressure and temperature calibration
- Automatic compensation and self-diagnostics
- Storage for up to 1000 test records
- RS232, Ethernet and USB connectivity for laboratory data systems
Applications
Rapid distillation-characteristic testing of gasoline, diesel and aviation fuels in petroleum laboratories, fuel quality control and research environments.
Specifications
| Temperature range | 0–400 °C |
|---|---|
| Temperature accuracy | 0.1 °C |
| Sample volume | 10 mL |
| Approximate test time | ≤15 minutes |
| Power consumption | 300 W |
| Power supply | AC 220 V ±22 V, 50 Hz ±5 Hz |
| Dimensions | 400 × 340 × 420 mm |
| Weight | 12 kg |
Standards and compliance
Designed around ASTM D7345 / NB/SH/T 6071 rapid micro-distillation methods.
