Overview

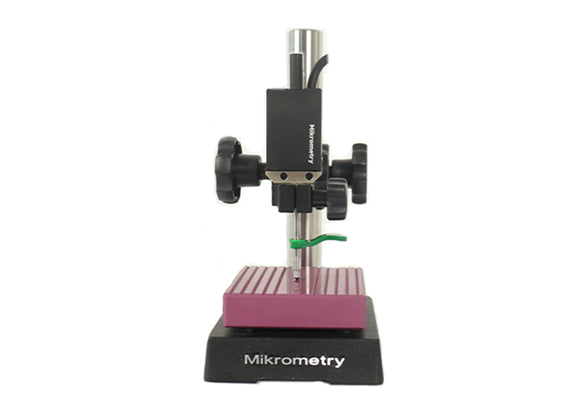

Mikrometry EHG12-01 Digital Height Comparator for precision component height comparison and small dimensional differences.
Key Features
- 0.1 µm resolution
- 12.5 mm measuring stroke
- Contact height-comparison system with stand and display
- USB / RS232 output
- 4-inch LCD
Applications
- Component height comparison
- Precision dimensional inspection
- Workshop and production comparator measurements
Specifications
| Model | EHG12-01 |
| Resolution | 0.1 µm |
| Stroke | 12.5 mm |
| Accuracy | ≤1 µm at 19–21°C |
| Repeatability | ≤0.2 µm |
| Contact force | 0.7 ±0.2 N |
| Output | USB / RS232 |
Included Equipment
Digital module, stand, probe, cable and handle. Optional equipment is quoted separately.
