Magnetic Particle Testing (MPI) – Dry Method Powder | Red 1kg, Box of 8 MR230

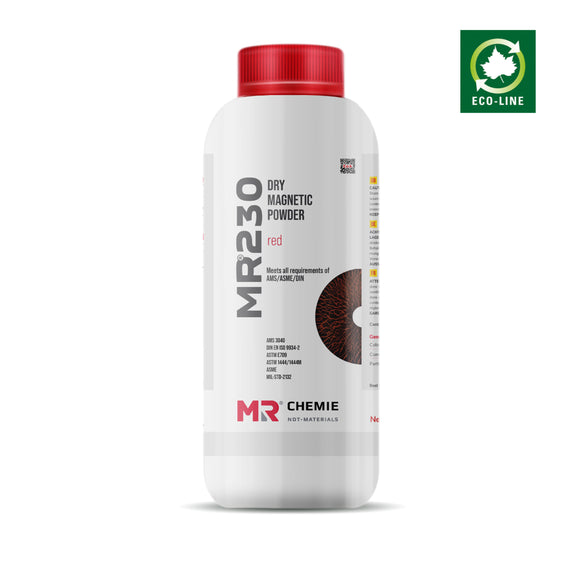

MR® 230 – Magnetic Powder Red
Product Characteristics

• Ready-to-use magnetic powder with ferromagnetic particles

• Suitable for all weld seams

• Designed for dry testing on warm/hot surfaces

• Orange-red crack indication in daylight & UV light

• Processing temperature up to 315 °C

• Average grain size: 75 μm

• Density: 2.5 – 3 g/cm³

• ECO-Line formulation

Minimum Shelf Life / Temperatures

• Bulk: 5 years

• Storage: +5 °C to +45 °C

• Application: < 315 °C

Application

• Fill MR® 230 into an applicator

• During magnetization, dust powder to form a visible magnetic cloud

• Under 500–1000 lux white light, imperfections appear as visible red powder beads

Approvals / Specifications

• AMS 3040

• EN ISO 9934-1

Suggested Products
Remover: MR® 71, MR® 79, MR® 85, MR® 88, MR® 3001, MR® 3002
Test body: Reference block 1 and 2, ASTM test block
Measuring device: Field strength meter, UVA/Lux, Luxmeter
Hand yoke: MR® 50, MR® 56
