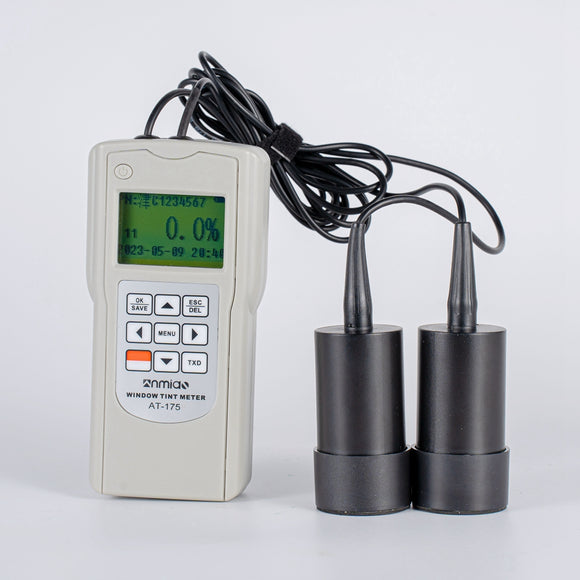

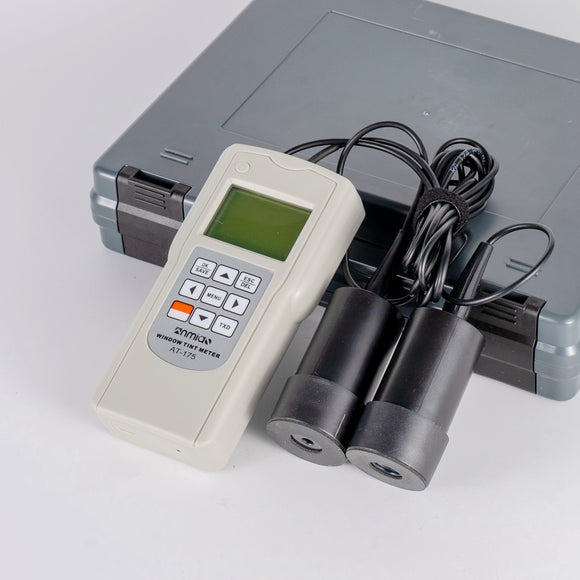

Luminousness Window Transmittance Meter (Window Tint)

Features:

• Simple operation, fast measurement speed, good sensitivity, high measurement accuracy
• AT-175P can be connected to a printer to print test data
• Instrument startup automatic calibration and manual calibration
• Large capacity storage, can store 500 measurement data

Specifications:

• Measurement range: 0.0% - 100%
• Measurement quantity: % beam transmission
• Thickness of the object to be measured: <30mm
• Volume of the measured object: <10mm*10mm
• Shutdown mode: Automatic shutdown or manual shutdown can be set
• Backlight: LED backlight
• Resolution: 0.1%
• Host size: 70mm*140mm*30mm
• Probe size: ?37mm*136mm
• Power: 4 * 7 batteries
• Operating temperature: 0°C - 40°C
• Wavelength range: 380nm - 780nm
• Operating humidity: < 85%

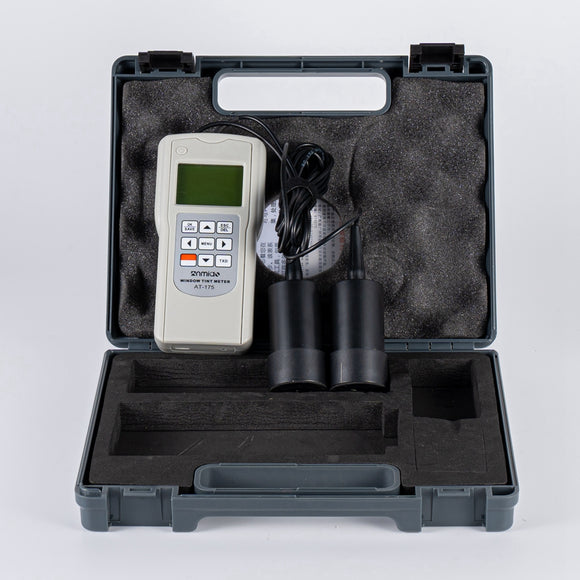

Accessories:

Standard Accessories (AT-175P):

• Host (built-in Bluetooth module)
• Bluetooth printer
• A roll of thermal paper
• Packaging box
• Manual

Optional Accessories (AT-175):

• Host
• Packaging box
• Manual

Downloads:

• WINDOW TINT METER AT-175P/175_Catalog
• WINDOW TINT METER AT-175P/175_Manual
