Gloss Meter YG268

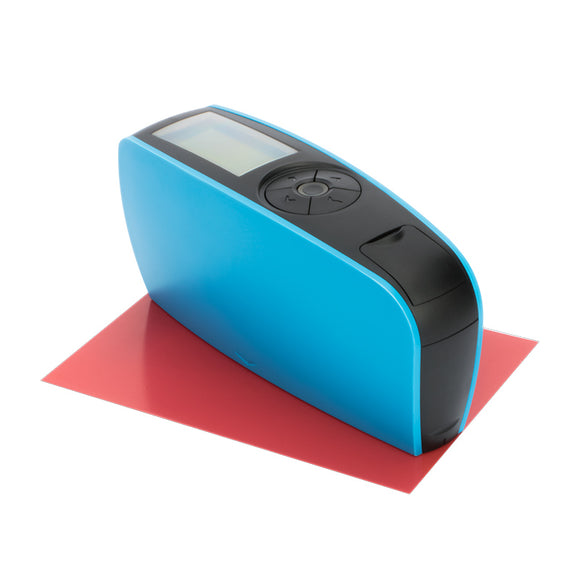

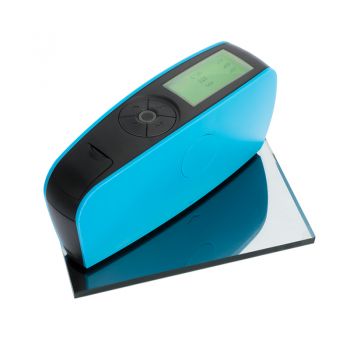

YG268 Tri-angle Gloss Meter

Introduction:

The YG268 Tri-angle Gloss Meter is an advanced instrument independently developed by Shenzhen 3nh Technology Co., Ltd. It features independent intellectual property and complies with international standard ISO2813 and Chinese standard GB/T 9754. Equipped with auto-calibration and high-end QC software, it meets the requirements of JJG696. The YG268 series gloss meter also includes USB/RS-232 interface and Bluetooth 2.1 dual mode for enhanced connectivity.

Product Features:

• Elegant design combining aesthetics and ergonomics.
• Auto-calibration function for ease of use.
• Compliance with the requirements of JJG696.
• Large storage capacity for over 35,000 data entries.
• Auto power-off function with optional settings between 30-120 seconds.
• Conforms to ISO2813, ASTM523, GB/T9754 standards.
• PC software for quality reporting and extended functionalities.
• Multiple working modes and functions to meet diverse customer requirements.

Application:

Widely used in industries such as paints, coatings, plastics, ink, rubber, printing, paper, glass, hardware, ceramics, marble, and more.

Specifications:

• Model: YG268 Tri-angle Gloss Meter
• Measuring Angle: 20°, 60°, 85°
• Measurement Range:
  • 20°: 0-2000 GU
  • 60°: 0-1000 GU
  • 85°: 0-160 GU
• Division Value: 0.1 GU
• Measuring Modes: Basic mode, Statistic mode, Continuous mode, QC mode
• Measuring Time: 0.5 S
• Repeatability:
  • 0~100 GU: ±0.2 GU
  • 100~2000 GU: ±0.2% GU
• Accuracy: Conforms with JJG696 requirements for gloss meters
• Auto Power-off Time: 30-120 seconds (adjustable)
• Long-time Calibration: Automatically checks and calibrates
• Language: Chinese & English
• Storage Capacity:
  • Basic mode & Statistic mode: 1500
  • Continuous mode: 10,000
  • QC mode: 10,000
• Display: 2.3-inch monochrome screen
• Dimensions: 160 * 52 * 84 mm
• Weight: Approximately 300 g
• Power Supply: 1 dry-cell battery (capable of 10,000 measurements) or USB charge
• Interface: USB
• PC Software: GQC6 QC software for printing testing reports and extended functionalities
• Operating Temperature Range: 0-40? (32-104°F)
• Storage Temperature Range: -20-50? (-4-122°F)
• Humidity Range: < 85% RH, without condensation

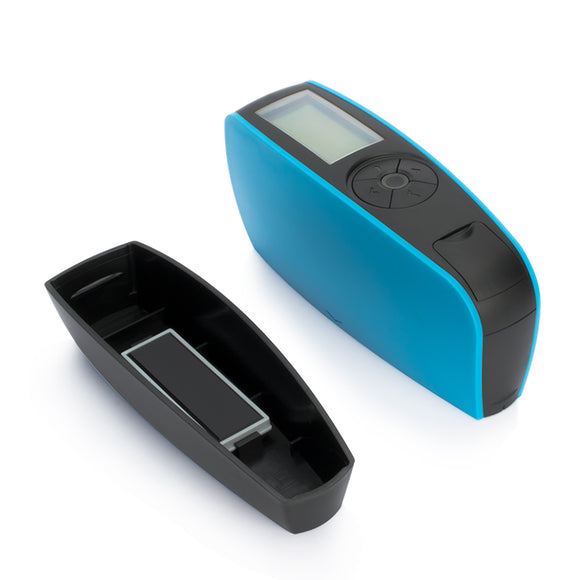

• Standard Accessories: USB cable, user manual, calibration plate, QC software
• Optional Accessories: Miniature printer, Bluetooth

Note: The technical parameters are for reference only and are subject to change.
