Product Description

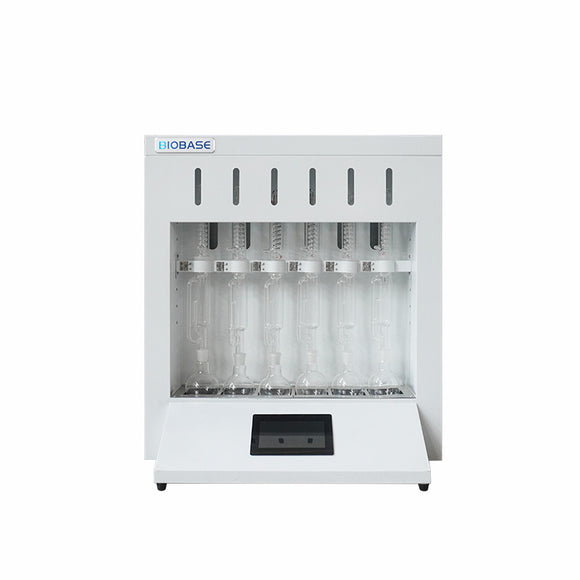

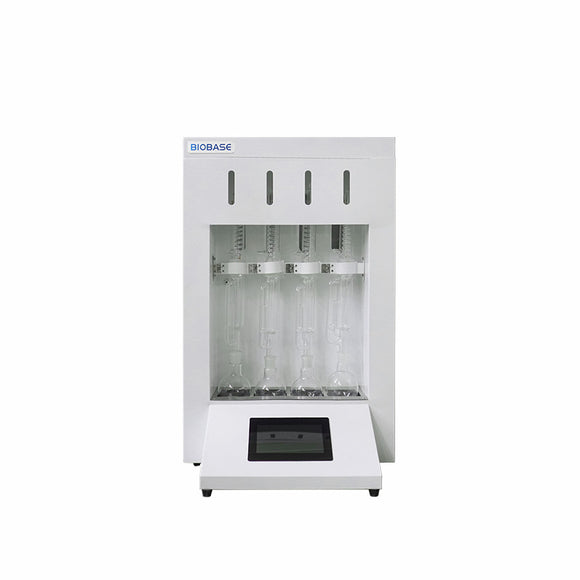

The BIOBASE Fat Extractor BKXET Series (BKXET02C, BKXET04C, BKXET06C) is a high-performance automatic Soxhlet extraction system designed for rapid and accurate crude fat analysis. Built for laboratory efficiency, this advanced fat analyzer integrates heating extraction, solvent recovery, and cooling into one compact system.
Each heating position operates independently, allowing precise temperature and time control based on different solvent boiling points. The integrated metal bath heating system and cast aluminum heating module ensure fast heating, rapid reflux, and reliable performance across multiple samples.
Ideal for food, feed, grain, oil, soil, and wool grease analysis, this factory-direct BIOBASE solution delivers consistent results while reducing solvent consumption and improving workflow efficiency.
Key Features
-
7-inch LCD Touch Screen – Intuitive display for easy parameter setting and monitoring
-
Independent Heating Positions – Each sample operates independently for precise control
-
Integrated Metal Bath Heating System – Ensures stable and uniform heating
-
Fast Heating & Rapid Reflux – Cast aluminum heating module improves efficiency
-
Heating Extraction + Solvent Recovery – Saves laboratory reagents and reduces waste
-
Built-in Circulating Water Pipeline – Simplified operation and stable cooling
-
Multiple Safety Protections – Overvoltage, overheating, and leakage protection
-
Reserved Heating Function – Programmable start time for automated operation
-
Dry Independent Heating Mode – Reliable and clean heating process
Applications
Suitable for crude fat extraction in:
-
Food products
-
Grains
-
Animal feed
-
Edible oils
-
Soil samples
-
Wool grease
Technical Specifications
| Model | BKXET02C | BKXET04C | BKXET06C |
|---|---|---|---|
| Capacity | 2 pcs | 4 pcs | 6 pcs |
| Sample Weight | 0–100 g | 0–100 g | 0–100 g |
| Temperature Range | RT. ~ 250°C | RT. ~ 250°C | RT. ~ 250°C |
| Solvent Cup Volume | 250 ml | 250 ml | 250 ml |
| Heating Method | Dry Independent Heating | Dry Independent Heating | Dry Independent Heating |
| Power Supply | AC220V, 50/60Hz (Standard) / 110V, 50/60Hz (Optional) | ||
| Device Configuration | Condensing Recovery Device, Overheating Protection Device | ||
| External Size (W×D×H) | 330×410×850 mm | 532×410×850 mm | 750×410×850 mm |
| Package Size (W×D×H) | 435×515×995 mm | 640×515×995 mm | 855×515×995 mm |
| Net Weight | 18 kg | 23 kg | 31 kg |
| Gross Weight | 23 kg | 28 kg | 37.5 kg |
Downloads
Data Sheet Link
