Product Description

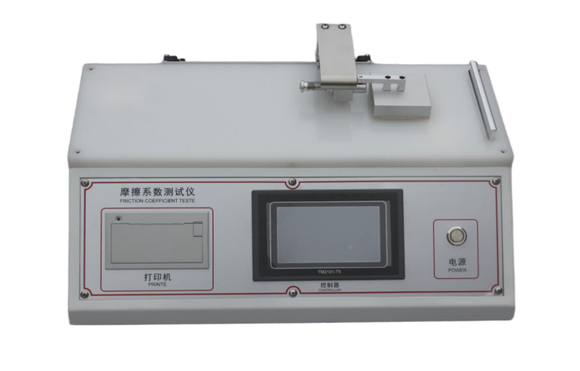

The ST-1197L is a benchtop electronic coefficient of friction tester for measuring the static and dynamic friction behaviour of plastic films, sheets and similar materials. A controlled sled movement and sensitive force sensor support repeatable comparison of material surfaces.
Features
- Static and dynamic coefficient of friction testing.
- 10 N force sensor with ±0.5% force accuracy.
- Digital touchscreen control.
- 150 mm slide travel and 150 mm/min sled movement.
- 200 g standard sled.
- Version A PC control software and data cable included.
- 25 mm sample cutter plate included.
Technical Specifications
| Model | ST-1197L |
|---|---|
| Sensor capacity | 10 N (1 kgf) |
| Force accuracy | ±0.5% |
| Slide travel | 150 mm |
| Sled mass | 200 ±2 g |
| Sled movement speed | 150 mm/min |
| Control system | Digital touchscreen |
| Dimensions (L × W × H) | 630 × 360 × 230 mm |
| Net weight | 33 kg |
| PC software | Version A with data cable |
| Sample cutter plate | 25 mm width |
Applications
- Packaging film and plastic sheet friction testing.
- Material surface comparison and quality control.
- Laboratory evaluation of sliding behaviour.
Included Equipment
ST-1197L friction tester, standard sled, Version A PC software, data cable and 25 mm sample cutter plate. Computer sold separately.
