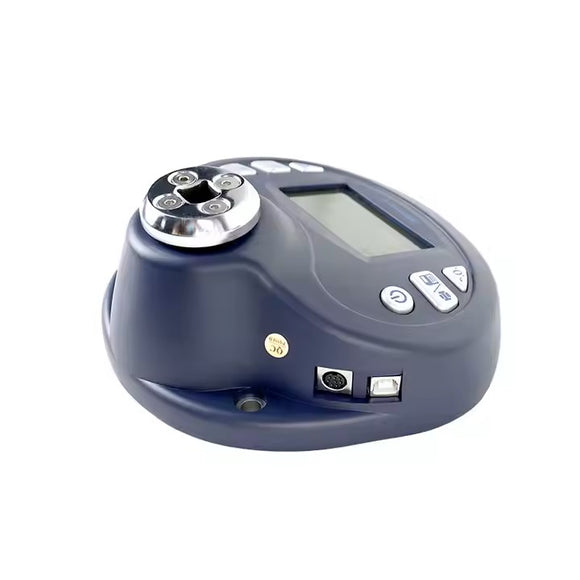

ETTB Digital Torque Tester
The ETTB Digital Torque Tester delivers precision, versatility, and ease of use for accurate torque measurements. With a wide detection range (10%–100%) and high accuracy of ±0.3%, this device is designed for professional torque testing applications.
Key Features:
Wide Measurement Range – Covers 10% to 100% full scale.
High Accuracy – ±0.3% precision ensures reliable measurements.
Multiple Units of Measurement – Supports N·m, N·cm, kgf·cm, lbf·ft, and lbf·in.

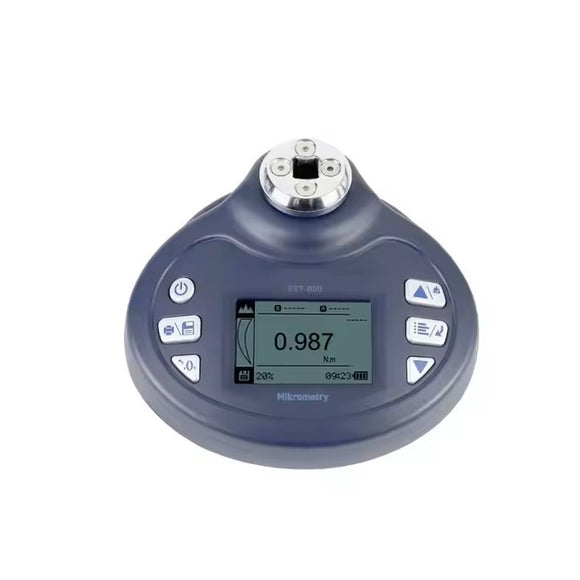

Digital & Chart Display – 160×240 LCD for clear and easy readings.
Advanced Detection Functions – Track, peak, best peak, bi-peak, and auto peak modes.
Adjustable Display Orientation – Turnover-able display for various mounting positions.
Comprehensive Calibration Options – Ensures precise and repeatable performance.

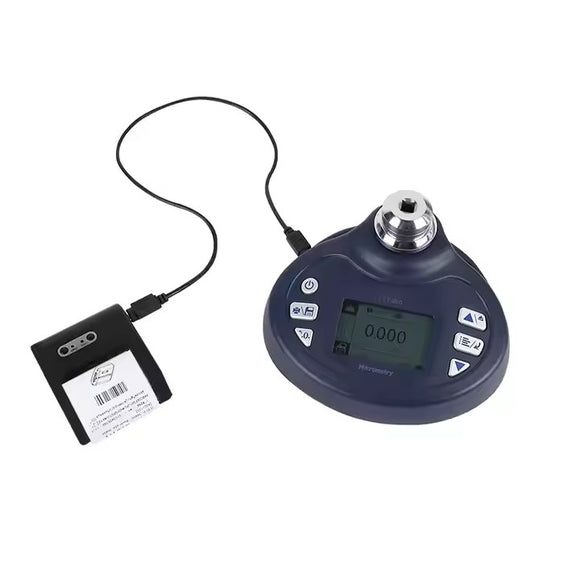

Multiple Output Options – USB, RS232, and over-limit alarm signal support.
Specifications:
- Overload Capacity: 120% F.S.
- Sampling Rate: 2000Hz
- Data Storage: 1000 messages
- Power Supply: 3.6V Ni-MH rechargeable battery; AC adapter (100–240V input, 5VDC 1A output)
- Dimensions: 197 × 184 × 83 mm
- Weight: 1.6kg
Available Models & Measurement Ranges:
| Model | N·m | N·cm | kgf·cm | lbf·ft | lbf·in | Port Size |
|---|---|---|---|---|---|---|
| ETTB2 | 0.2–2 / 0.0002 | 20–200 / 0.02 | 2–20 / 0.002 | 0.14–1.48 / 0.0002 | 1.77–17.7 / 0.002 | 12.5 (1/2") / 6.3 (1/4") |
| ETTB5 | 0.5–5 / 0.0005 | 50–500 / 0.05 | 5–50 / 0.005 | 0.37–3.7 / 0.0005 | 4.4–44.3 / 0.005 | 12.5 (1/2") / 6.3 (1/4") |
| ETTB10 | 1–10 / 0.001 | 100–1000 / 0.1 | 10–100 / 0.01 | 0.74–7.4 / 0.001 | 8.8–88.5 / 0.01 | 12.5 (1/2") / 10 (3/8") |
| ETTB20 | 2–20 / 0.002 | 200–2000 / 0.2 | 20–200 / 0.02 | 1.48–14.8 / 0.002 | 17.7–177 / 0.02 | 12.5 (1/2") |
| ETTB50 | 5–50 / 0.005 | 500–5000 / 0.5 | 50–500 / 0.05 | 3.6–36.8 / 0.005 | 44–443 / 0.05 | 12.5 (1/2") / 10 (3/8") |
| ETTB100 | 10–100 / 0.01 | 1000–10000 / 1 | 100–1000 / 0.1 | 7.4–74 / 0.01 | 88–885 / 0.1 | 12.5 (1/2") |
Upgrade your torque measurement with the ETTB Digital Torque Tester – a reliable, high-precision tool for professional applications!
Optional Accessories:

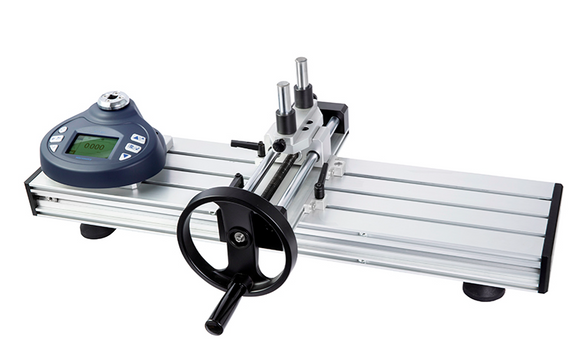

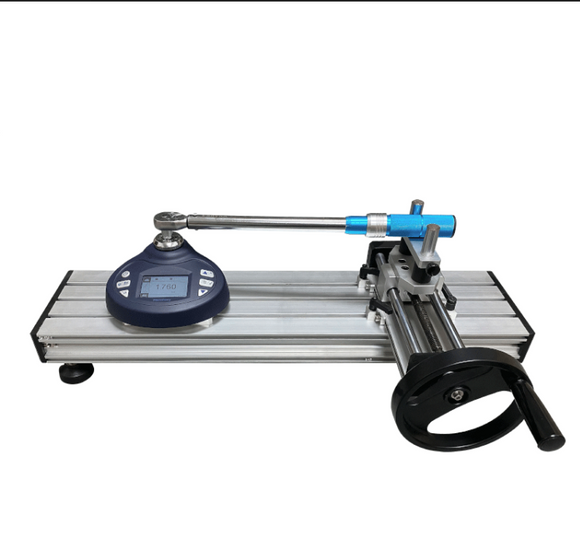

500mm Test Stand
1000mm Test Stand
Download
Data Sheet Link
