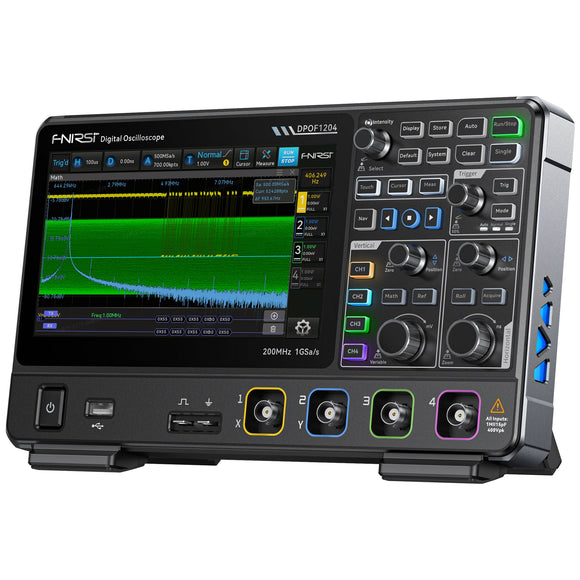

A 200 MHz bench oscilloscope for circuit development, electronics troubleshooting and simultaneous analysis of analogue signals.
Features
- Four analogue channels with a 7-inch touchscreen
- Serial decoding for I2C, SPI, UART, CAN and LIN
- FFT, automatic measurements, waveform history and pass/fail functions
Specifications
| Analogue bandwidth | 200 MHz |
|---|---|
| Analogue channels | 4 |
| Maximum sampling | 500 MSa/s per channel with all four channels active; up to 1 GSa/s interleaved |
| Memory depth | 7 Mpts non-interleaved; up to 14 Mpts interleaved |
| Maximum capture rate | 450,000 waveforms/s in sequence mode |
| Display | 7-inch touchscreen; 800 x 480 |
| Connectivity | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Supplied probes | 4 x 200 MHz passive probes |
| Instrument weight | Approximately 1,036 g |
Applications
Embedded electronics development, power-supply diagnostics, laboratory teaching and production troubleshooting.
Supplied package
Oscilloscope, four passive probes, grounding wire, power adapter, USB-A to USB-B cable and user guide.
Availability
Supplier pre-order. Contact us to confirm availability and delivery date before ordering.
