Decibel Meter PCE-322A

R 6,880.00

Tax includedShipping calculated at checkout

PCE

Add R 2,000.00 more for FREE shipping!

Shipping
Ships in 5-10 business days

Warranty
2 year standard warranty

Description Shipping

Description

PCE-322A Decibel Meter
Class II sound level meter with data-logging functionality / Measuring range: 30 ... 130 dB / Memory stores up to 32,700 readings / USB port / Microsoft Excel compatible / Analog output

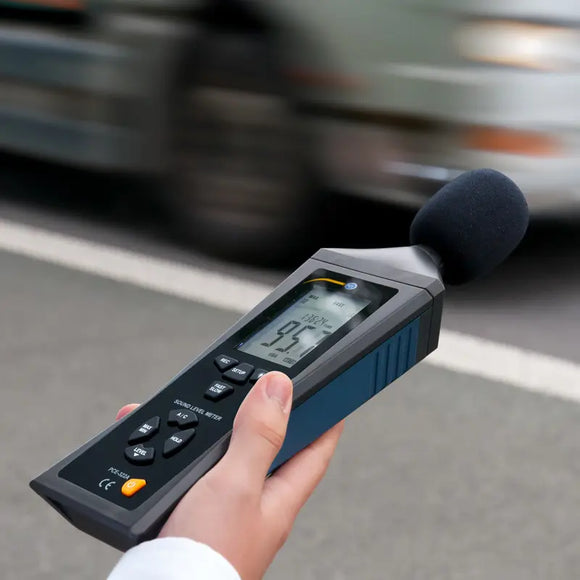

PCE-322A is a handheld, portable, professional Class II sound level meter or decibel (dB) meter with built-in data-logging or data-recording functionality. Thus, PCE-322A is ideal for real-time noise measurement as well as for long-term noise exposure monitoring over time. A mini tripod is included in the delivery contents, as is a wind noise suppressor. The recorded decibel readings help users determine if and what protective measures need to be taken to ensure overall health, safety and productivity in industrial, commercial, occupational, educational and residential environments. The decibel meter can also be used to evaluate acoustics for audio installations.

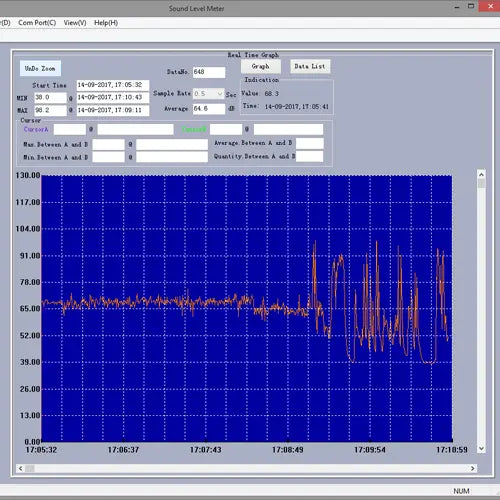

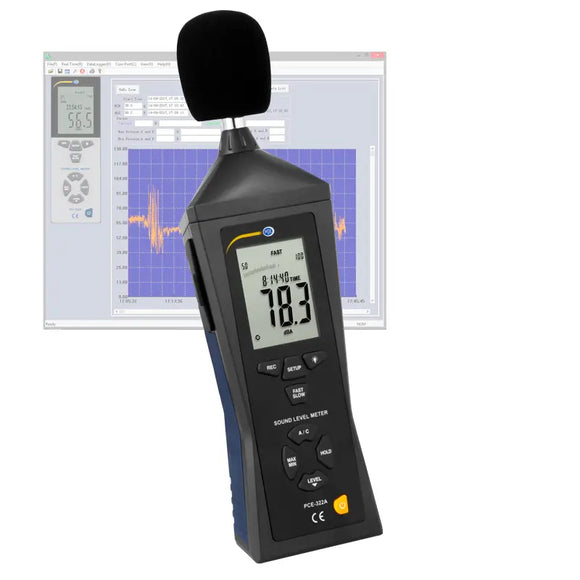

The decibel meter can be connected to a PC via the USB port. This allows the recorded decibel readings to be transferred to a PC for detailed analysis using Microsoft Excel or the included downloadable proprietary software. The decibel meter also features an millivolt analog output for connecting to a frequency analyzer or X-Y shaft recorder.


Highlights

- IEC 61672-1 Class II sound level meter

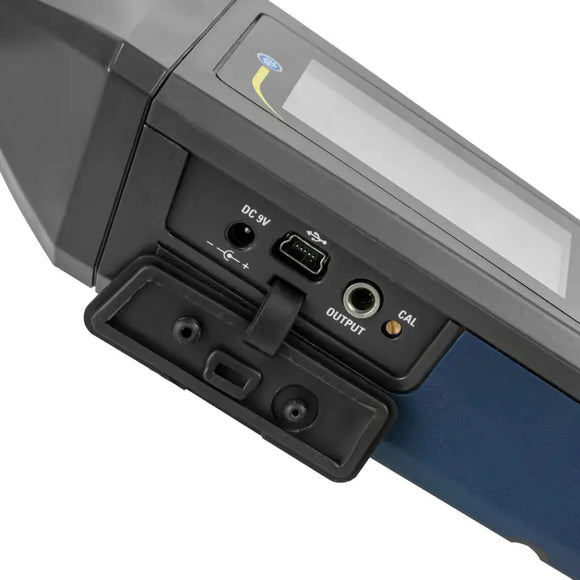

- USB port for data transfer
- Memory stores up to 32,700 readings
- Fast and slow time weighting
- A and C frequency weightings
- Max, min, hold and alarm functions
- Date- and time-stamped measurements
- Analog millivolt output
- Heavy-duty ABS plastic enclosure

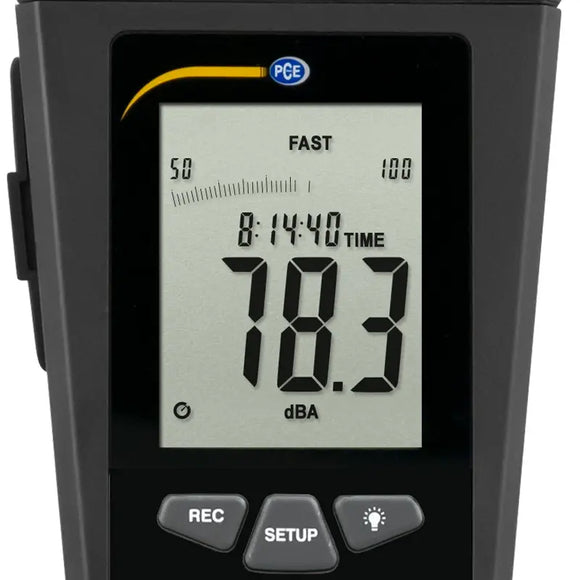

- Large, easy-to-read, 4-digit LCD screen
- Power-saving automatic shutoff > 15 min. inactivity
- Battery allows approx. 30 hours continuous use
- ISO calibration available as an option - see accessories for details

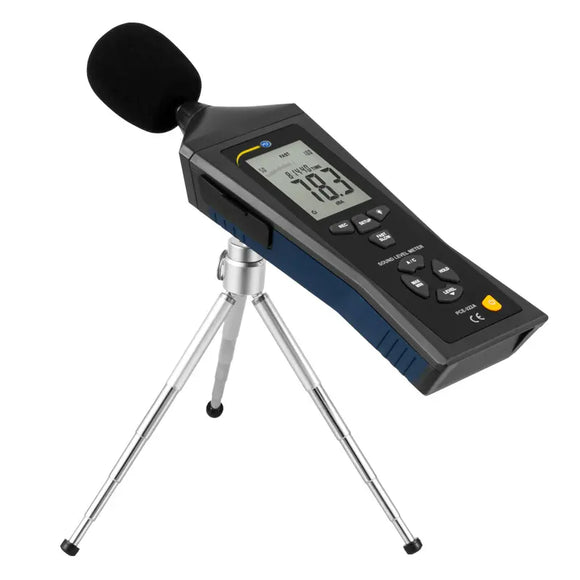

- Tripod mount with 1/4-20 UNC thread


Specification

PCE-322A
Noise levels Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
Dynamic range 50 dB
Display 4-digit LCD
Resolution 0.1 dB
Accuracy ±1.4 dB
Sampling rate 2 x per second
Frequency 31.5 Hz ... 8 kHz
Storage capacity 32,700 readings (9 hours @ 1 second interval)
Frequency weighting          A and C
Time weighting Fast (125 ms)
Slow (1 sec.)
Microphone type Electret condenser
Functions MIN, MAX, HOLD, ALARM
Analog output AC/DC millivolt
Headphone
Data interface USB port
Automatic shutdown After 15 minutes inactivity
Operating conditions 0 ... 40°C / 32 ... 104°F, < 90% RH
Storage conditions -10 ... 60°C / 14 ... 140°F, 10 ... 75% RH
Power supply 9V block battery (for approx. 30 h continuous operation)
AC power
Dimensions 280 x 95 x 45 mm / 11.02 x 3.74 x 1.77 in
Weight Approx. 350 g / 0.78 lb
Standards IEC 61672-1 Class II

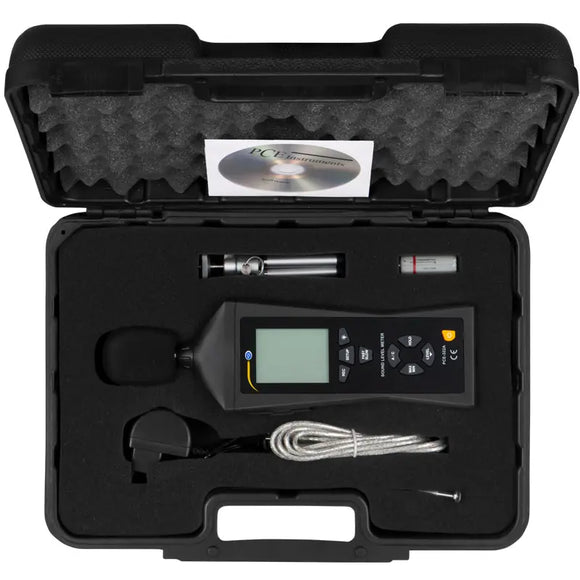

Delivery Scope

1 x PCE-322A decibel meter
1 x Wind noise suppressor
1 x USB cable
1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x User manual
