360° Pipeline Inspection System
The TOMLIN AHD Series V8-33PTF is a high-performance pipeline inspection camera system engineered for accurate internal pipe diagnostics. Designed for professionals who require precision and durability, this system delivers clear AHD imaging, full 360° camera rotation, and integrated DVR recording functionality.
Ideal for municipal infrastructure, petrochemical facilities, water supply systems, industrial plants, HVAC ducting, and building pipelines, the V8-33PTF ensures reliable inspection in dark, confined, and wet environments.
With its integrated portable design, digital meter counter, and rugged construction, the TOMLIN V8-33PTF provides efficiency, convenience, and dependable performance for both routine inspections and emergency diagnostics.
Key Features
-

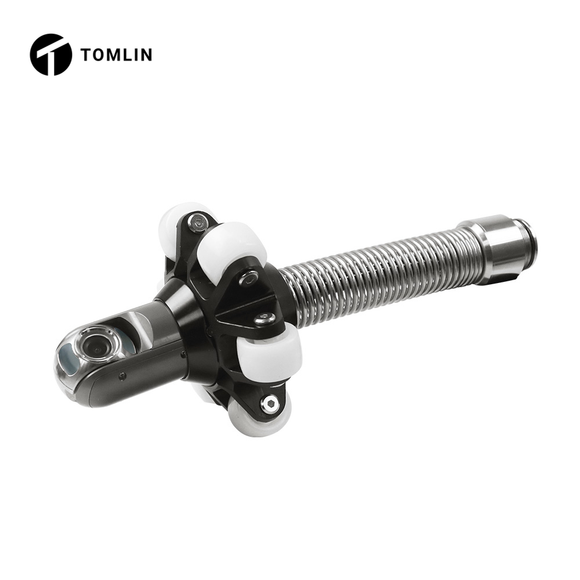

33mm AHD rotating camera head with 360° pan and 180° tilt
-
2MP high-definition imaging for clear inspection results
-
8-inch IPS HD display with 1280 × 720 resolution
-
Built-in DVR system for photo, video (MP4 720P), and audio recording
-
Sapphire lens with stainless steel housing for enhanced durability
-
IP68 waterproof camera head suitable for wet environments
-
6 adjustable high-brightness LED lights
-
Flexible fiberglass push rod cable (20m–40m optional)
-
Portable integrated design with digital meter counter (≤1% error)
-
Built-in 6800mAh lithium-ion battery with up to 5 hours working time
-
External USB storage support (up to 32GB)
-
Wireless USB keyboard compatibility
Technical Specifications
Camera System
-

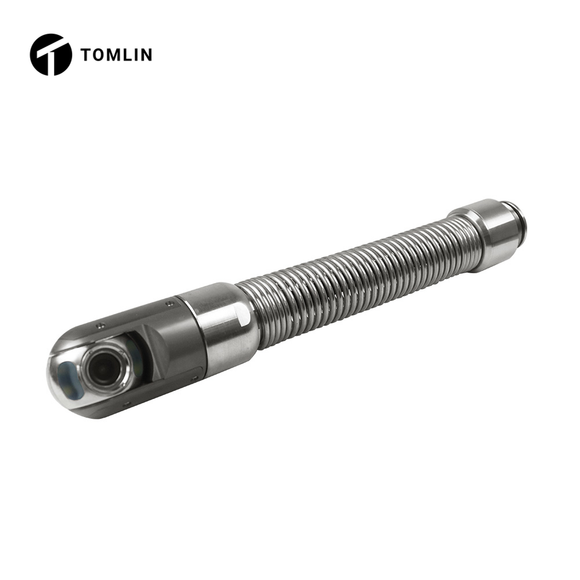

Camera Size: Φ33mm × 72mm
-
Rotation: 360° Pan / 180° Tilt
-
Resolution: 2MP
-
Wide Angle: 120°
-
Lens: Sapphire
-
Housing Material: Stainless Steel
-
Waterproof Rating: IP68
-
Lighting: 6 high-brightness adjustable LEDs
-
Built-in 512Hz transmission signal (compatible with receiver)

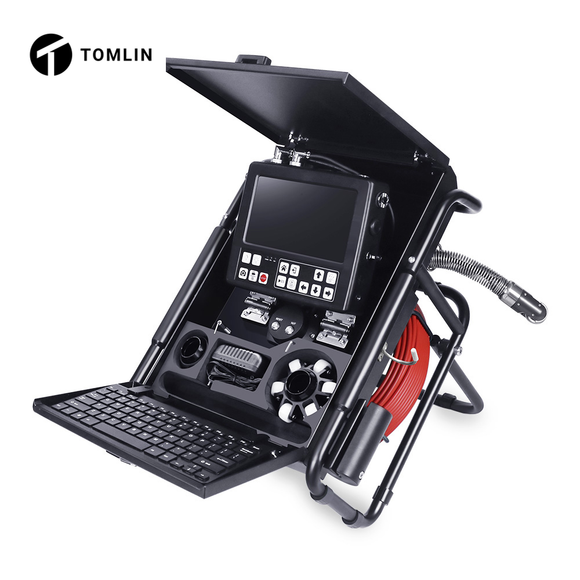

Display & Control Box
-

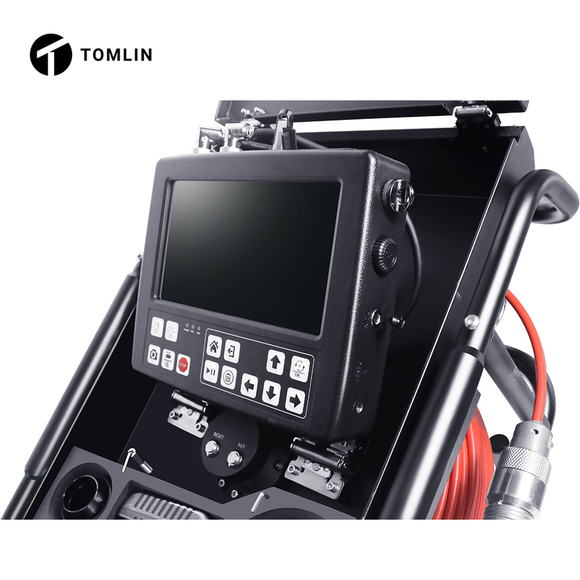

Screen Size: 8-inch IPS LCD
-
Resolution: 1280 × 720
-
Video Format: 720P MP4
-
Storage: External USB (up to 32GB)
-
Audio/Video Recording: Supported
-
Battery Capacity: 6800mAh lithium-ion
-
Operating Time: Approx. 5 hours
-
Control Box: Waterproof (not submersible)
Cable & Reel
-
Cable Type: Fiberglass push rod
-
Cable Diameter: Φ7.0mm
-
Cable Length: 20m–40m optional
-

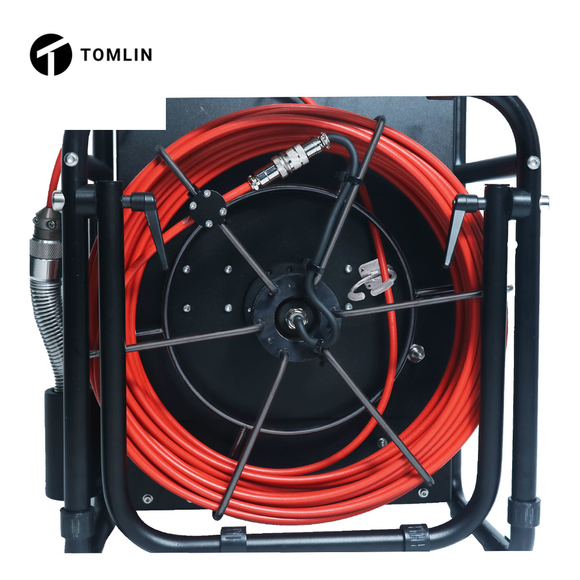

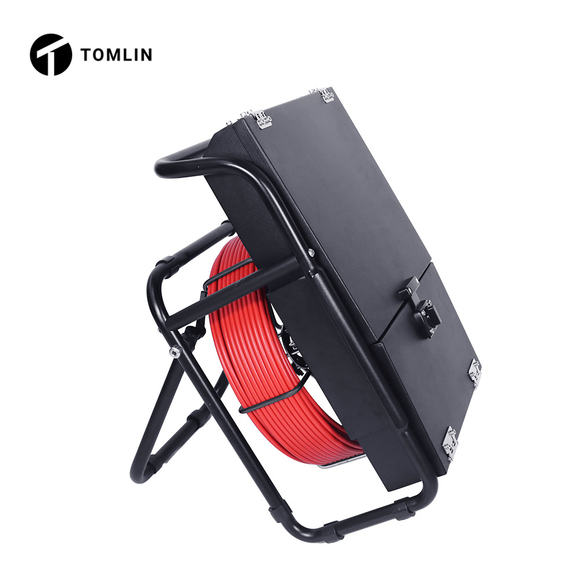

Portable cable reel with digital meter counter
-
Meter Accuracy: ≤1% error
Applications
The TOMLIN V8-33PTF pipeline inspection system is widely used across multiple industries:
-
Municipal sewer and drainage inspection
-
Petrochemical pipeline monitoring
-
Water supply and hydropower systems
-
Industrial plant and mining infrastructure
-
HVAC duct and ventilation inspection
-
Railway and automotive inspection
-
Aviation maintenance
-
Construction and building diagnostics
-
Disaster response and confined space investigation
The system enables operators to detect cracks, corrosion, weld defects, blockages, and structural abnormalities quickly and accurately, even in challenging inspection environments.
Why Choose TOMLIN V8-33PTF?
The TOMLIN AHD 360° Pipeline Inspection Camera combines robust construction, advanced imaging technology, and portable convenience in one professional inspection solution. It delivers consistent performance and dependable results for demanding pipeline inspection tasks.
