Colorimeter NH310

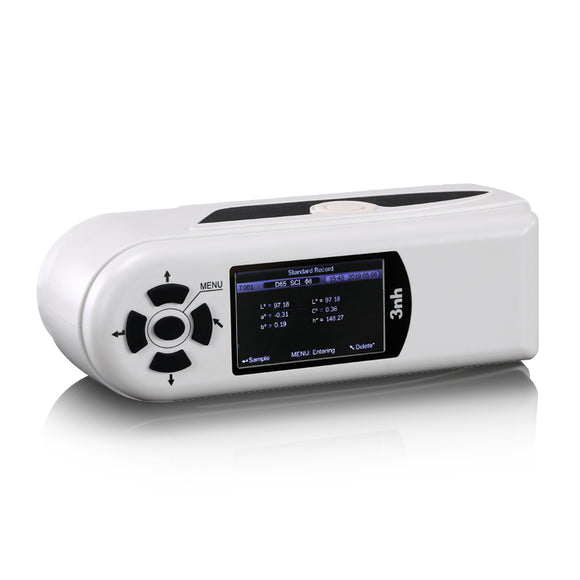

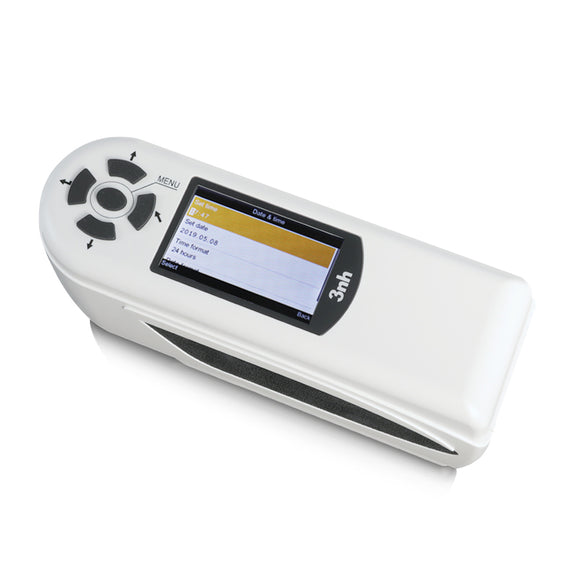

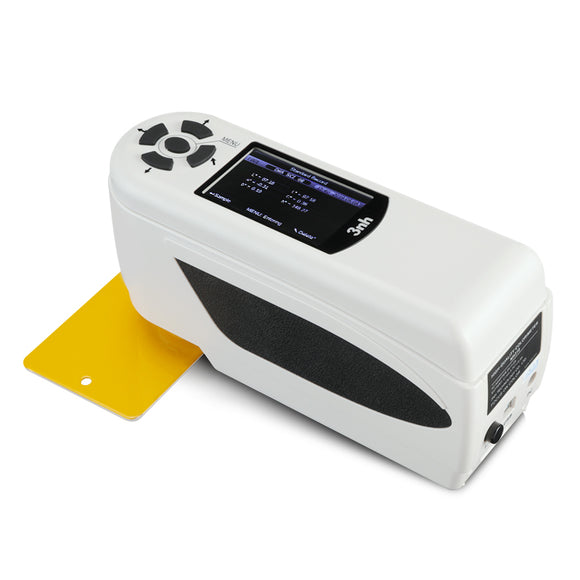

NH310 Portable Colorimeter

Introduction:

The NH310 is a high-quality portable colorimeter developed by 3nh, integrating the benefits of various traditional imported colorimeters. It has undergone extensive testing and incorporates innovative technologies, making it an accurate, stable, exquisite, and affordable solution for color quality control management. The NH310 features a multi-channel color sensor from international brands, a stable IC platform, and efficient algorithms, ensuring accurate and fast color management. Ergonomically designed for user convenience, the NH310 is a versatile and competitive option in the field of color management.

Features:

• Human-Centric Design:
  • Auto white and black calibration at startup.
  • Ergonomic structure for easy handling and operation.
• Stable Measurement Performance:
  • Average fluctuation of ?E is less than 0.06, typically between 0.03~0.06.
  • Portable design enhances stability during use.
• Flexible and Accurate Locating:
  • Camera locating for precise measurement on small areas.
  • Illumination locating for fast and convenient positioning.
• Versatile Measurement Modes:
  • Multiple apertures and color spaces for various scenarios.
  • Three light sources to accommodate different environments.
• PC Software Integration:
  • Enables color difference analysis, chromaticity index, sample database management, and more.
• Advanced Power Management:
  • High-capacity Li-ion battery supports over 3000 measurements per charge.
  • Rechargeable battery, reducing operational costs.

Specifications:

• Illuminating/Viewing Geometry: 8/d
• Measuring Aperture: ?8mm/?4mm
• Detector: Silicon photoelectric diode
• Color Space: CIEL*a*b*C*h*, CIEL*a*b*, CIEXYZ, CIERGB, CIEL*u*v*, CIEL*C*h, Yellowness & Whiteness, Color Fastness
• Color Difference Formula: ?E*ab, ?L*a*b*, ?E*C*h*, ?ECIE94, ?Ehunter
• Light Source: D65, D50, A
• Light Source Device: LED blue light excitation
• Errors Between Equipment: ?0.40 ?E*ab
• Storage Capacity: 100 standards, 20000 samples
• Repeatability: Standard deviation within ?E*ab 0.06 (average of 30 measurements on standard white plate)
• Weight: 500g
• Dimensions: 205×70×100 mm
• Power Source: Rechargeable lithium-ion battery 3.7V@3200mAh
• Lamp Life: 5 years, over 1.6 million measurements
• Charging Time: 2 hours (first charge 8 hours for 100% charge)
• Measuring Times Before Recharge: More than 3000 times
• Operating Temperature/Humidity Range: -10~40?, relative humidity 0~85% without condensation
• Data Interface: USB
• Extended Aperture (Optional): ?8mm for concave surfaces
• Printer (Optional): Miniature thermal printer

Note: The specifications are subject to change without notice.
