Product Description

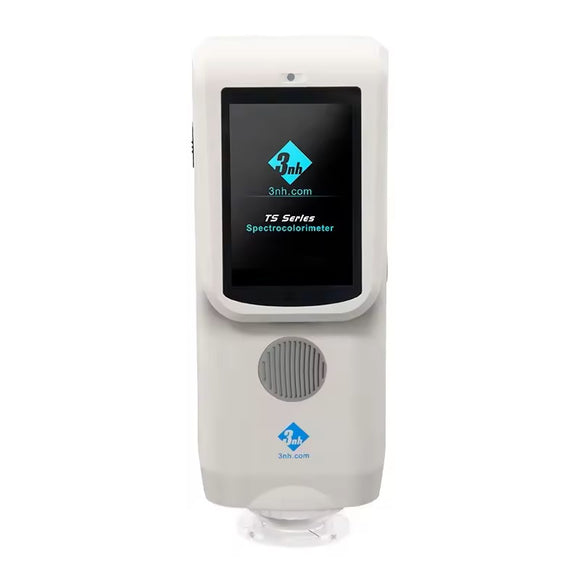

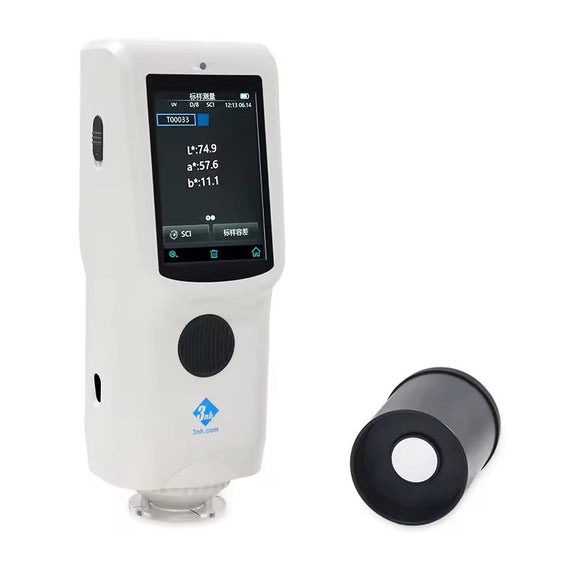

The Spectro color reader CR8 (Professional) is an advanced and portable spectrophotometer designed by 3nh, combining both spectrophotometer and Spectro color reader capabilities in one device. Featuring high precision and performance, this versatile tool is perfect for professional color measurement applications across various industries. With Bluetooth connectivity, PC software integration, and a user-friendly design, the CR8 makes color management seamless and efficient. Its cutting-edge technology ensures consistency and reliability, while its ergonomic design enhances ease of use.

Features

  1. Full-Band Balanced LED Light Source: Ensures complete spectral distribution across the visible range for accurate and fast color measurements.
  2. Silicon Photodiode Array Sensor: Dual-row 32 array sensor offers higher sensitivity and a wider spectral response, delivering precise and stable results.
  3. Grating Spectrophotometric Technology: Improves resolution for more accurate color measurement.
  4. Professional Whiteboard: A durable, non-fading whiteboard that maintains accuracy over time.
  5. Fast Charging: Special fast charging capability ensures long battery life and consistent performance.
  6. Ergonomic Design: Designed for comfort and ease of use with a well-placed handgrip and measurement button.
  7. Customizable Aperture: Choose between Ø8mm and Ø4mm apertures to suit different sample measurement needs.
  8. Massive Color Card Database: Stores 500 standard and 10,000 sample records, and allows cloud-based storage and color data comparison through the mobile app.
  9. Data Consistency: Excellent inter-instrument error and repeatability ensure consistent results across multiple devices.
  10. Diversified Data Display: Displays reflectance, chromaticity values, color difference, pass/fail results, and more.

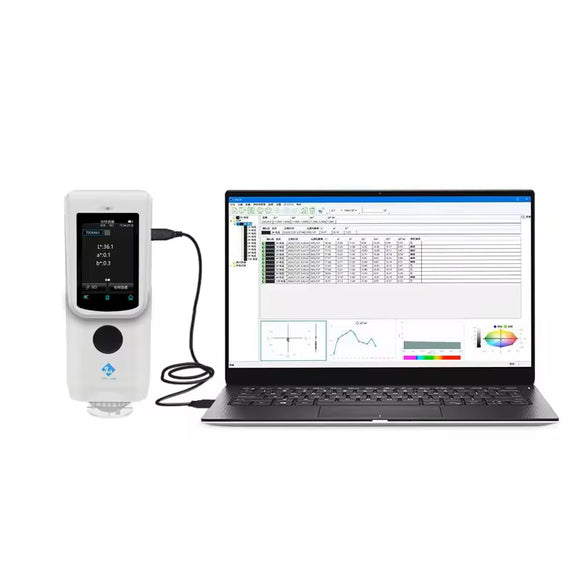

  11. Multi-Platform Use: Can be used independently or connected to a PC or mobile app for expanded functionality.
  • Model CR8 (Professional)
    Optical geometry D/8 (diffuse illumination, 8° direction reception)
    SCI measurement
    Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
    Characteristics Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
    Integrating sphere size Φ40mm
    Light source Combined full-spectrum LED light source
    Spectroscopic method Planar grating
    Sensor Silicon photodiode arrays (dual row 32 groups)
    Wavelength range 400~700nm
    Wavelength interval 10nm
    Semiband Bandwidth 10nm
    Measurement range L:0~120
    Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display
    Measurement aperture Single aperture: Φ8mm ( Φ4mm optional)
    Focusing method Fixed Focus
    Specular component SCI
    Color space CIE LAB,XYZ,Yxy,LCh
    Color difference formula ΔE*ab,ΔE*00
    Other colorimetric indexs Multiple colorimetric indexs are realized through APP
    Observer angle 10°
    Illuminant D65,A,F2(CWF)
    Displayed data Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
    Display Accuracy 0.01
    Measurement time Approx. 1.5s
    Repeatability Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
    Inter-instrument error MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
    Measurement method Single measurement, average measurement (2~99 times)
    Locating method Stabilizer locating
    Size LxWxH=81X71X214mm
    Weight About 460g
    Battery power Lithium battery, 6000 times in 8 hours
    Illuminant life span 5 years, more than 3 million times measurements
    Display TFT true color 3.5inch, capacitive touch screen
    Data port USB, Bluetooth® 5.0
    Data storage 500 standard samples, 1,0000 samples , APP mass storage
    Language Simplified Chinese, English, Traditional Chinese
    Operating temperature range 0~40℃, 0~85%RH (no condensation), altitude< 2000m
    Storage temperature range -20~50℃, 0~85%RH (no condensation)
    Standard Accessories Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)

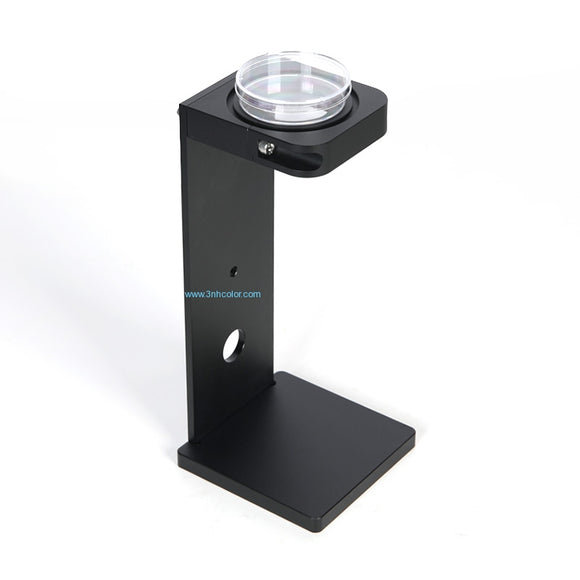

    Optional Accessories USB micro printer, powder test box, Bluetooth micro printer,holder base

PDF Specification Sheet - Click Here
