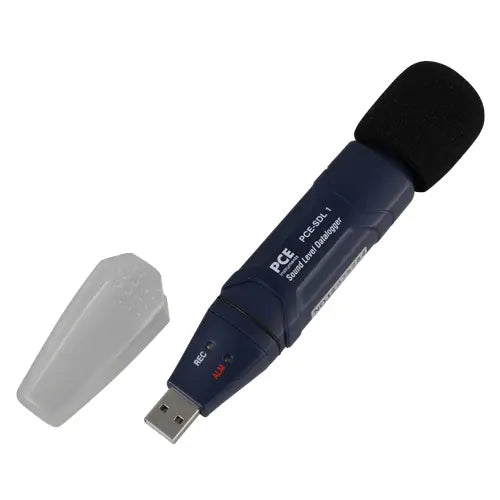

PCE-SDL 1 Data-Logging Decibel Meter
Class 2 data-logging noise meter with USB interface and Windows-compatible software

PCE-SDL 1 is a class 2 (type 2) data-logging sound level meter, sound pressure level (SPL) meter, noise meter or decibel (dB) meter used for long-term acoustic measurements.

The Windows-compatible software included with the meter allows for the display of a progressive graph of the data collected. The software also enables the user to set alarm limits indicated on the meter via flashing LEDs.


Highlights

- Measuring range: 30 ... 130 dB
- Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval
- Includes USB interface and Windows-compatible software for data transfer to PC
- NORM (normal) and PEAK modes
- Adjustable alarm limits
- LED alarm indicators
- A and C frequency weighting
- Frequency range: 31.5 Hz ... 8 kHz
- Adjustable measurement interval
- Date- and time-stamped data collection
- Manual and auto-start modes
- Standard: IEC 61672-1 (Class 2)


Specification

Measurement range 30 ... 130 dB
Standard IEC 61672-1 (Class II)
Accuracy ± 1.4 dB
Time weighting Fast and slow
Frequency 31.5 Hz ... 8 kHz
Storage capacity 129,920 data sets
Frequency weighting A and C
Measuring rate 1 sec ... 24 hrs
Operating conditions 0 ... 40 °C / +32 ... +104 °F , 10 ... 75 % RH
Power supply 3.6 V battery
System requirements Windows 2000 and up
Dimensions Approx. 130 x 25 x 30 mm / 5.12 x 0.98 x 1.18"
Weight Approx. 20 g / 0.05 lb
See user manual for complete technical specifications.

Delivery Scope

1 x Class 2 Data-Logging Decibel Meter PCE-SDL 1
1 x wind noise suppressor
1 x wall bracket
1 x Windows®-executable software (English)
1 x battery 14250 Li
1 x manual
