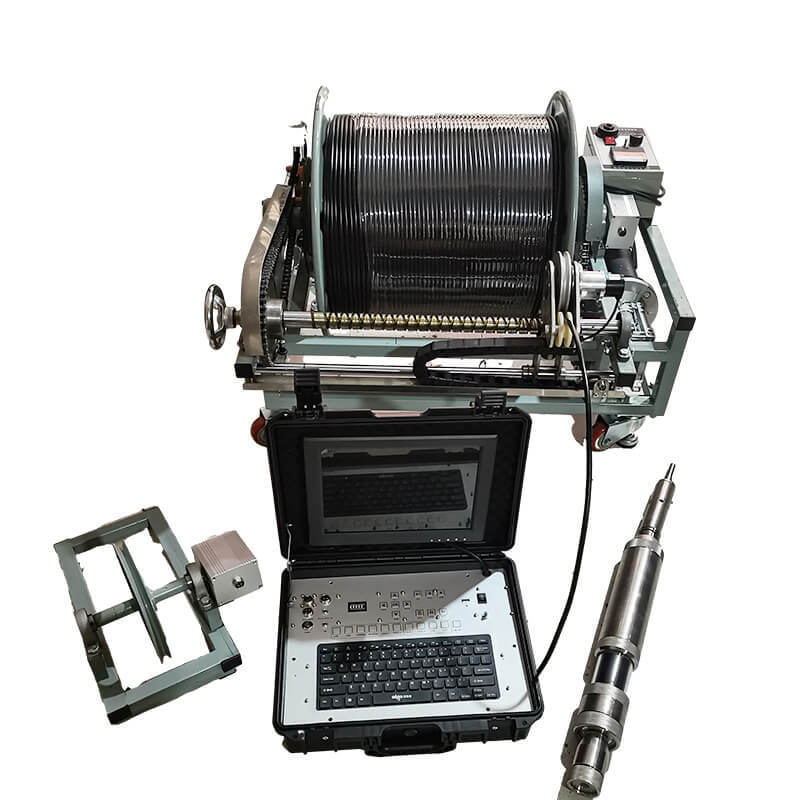

The SWP-200 is a high-resolution, professional-grade borehole inspection camera system designed for geological, hydrogeological, and engineering investigations. Equipped with dual 360° rotating cameras, powerful LED illumination, and a rugged waterproof design, this system is ideal for deep borehole inspections, well casing integrity assessments, and subsurface exploration.
Key Features
-
Dual 360° Rotating Cameras: Capture comprehensive borehole visuals with front and side (cast) camera views.
-
12" LCD Display Monitor: Real-time viewing and video playback in HD resolution.
-
Waterproof & Weatherproof Design: IP68 camera rating; IP54 host protection.
-
Adjustable LED Light Control: High-intensity lighting for dark and deep environments.
-
Measurement Options: Depth display in feet or meters.
-
Focus Camera (Cast/Side View): Optional side camera for enhanced inspection flexibility.
-
Zoom Image Functionality: External keyboard supports 2x, 4x, 8x, and 16x zoom.
-
32GB USB/SD Storage: Built-in memory for convenient video and photo recording.
-
304 Stainless Steel Camera Housing: Durable, corrosion-resistant, and pressure-resistant (up to 35MPa).
-
Camera Resolution: 1280×720 HD with built-in microphone and wide-angle lens.
Technical Specifications
Camera System
-
Dual Camera Setup: 360° rotary & 180° panoramic view
-
Camera Diameter: 73mm
-
Material: 304 Stainless Steel
-
Max Pressure Resistance: 35MPa
-
Max Detection Depth: Up to 2000m
-
Night Vision: Built-in

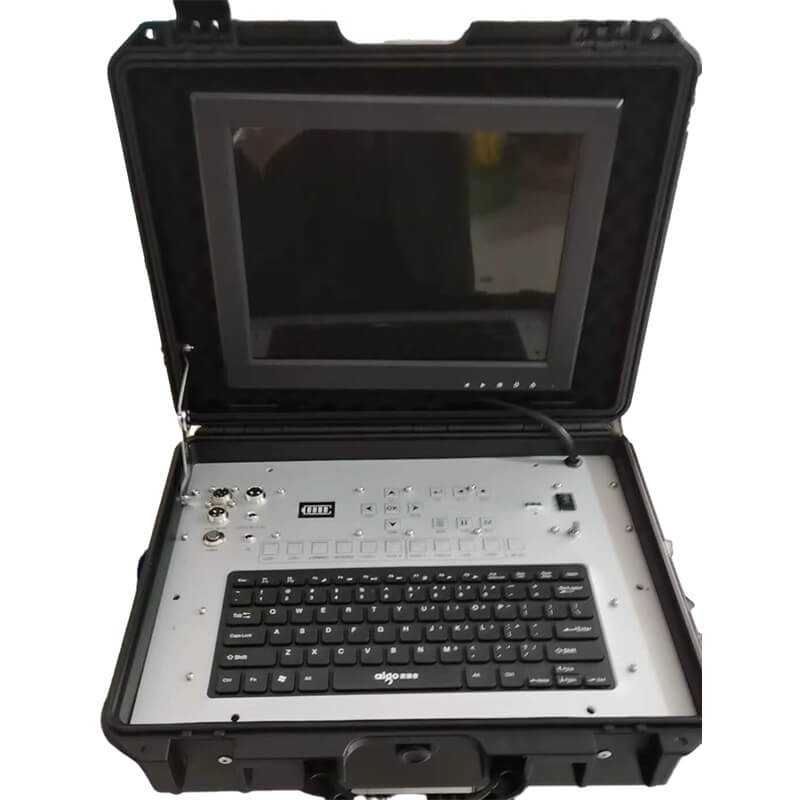

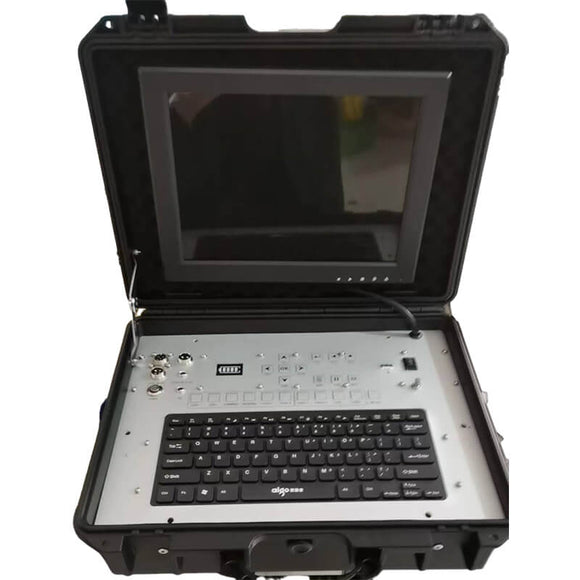

Host Unit
-
Display: 12” DVR LCD Monitor
-
Power Supply: 12V DC
-
Storage Options: USB / Internal 32GB
-
File Formats:
-
Images: BMP, JPEG
-
Video: MP4 (H.265 compression)
-
-
Keyboard Support: External with character input & zoom functions
Cable Options
-
Length: 200m Standard
-
100m-1500m (Optional)
Winch Options

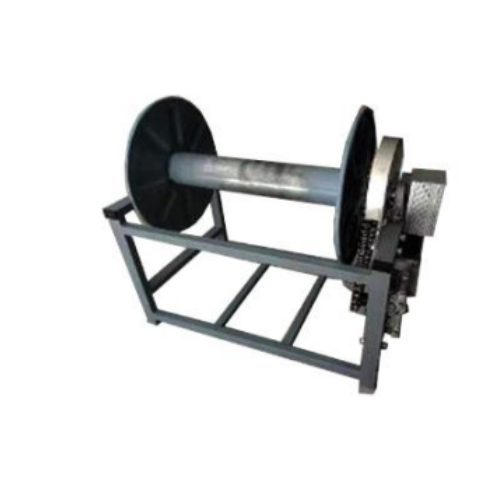

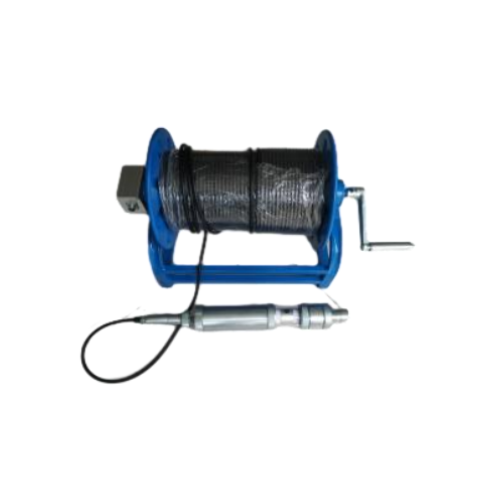

Manual Winch (Standard)
-
Length: 100–400m
-
Integrated brake system
-
Upgradeable to electric winch

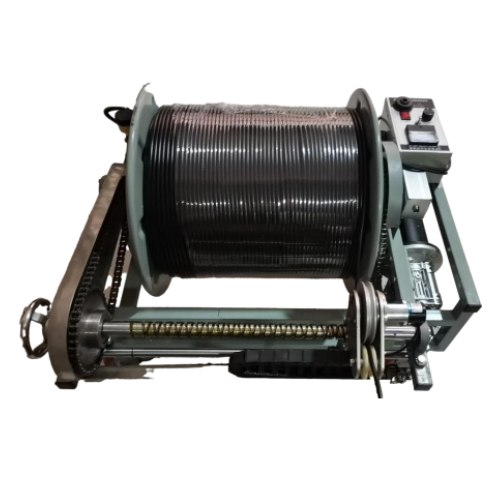

Electric Winch (Optional)
-
Adjustable speed motor
-
Custom cable lengths
-
Standard depth: 500m

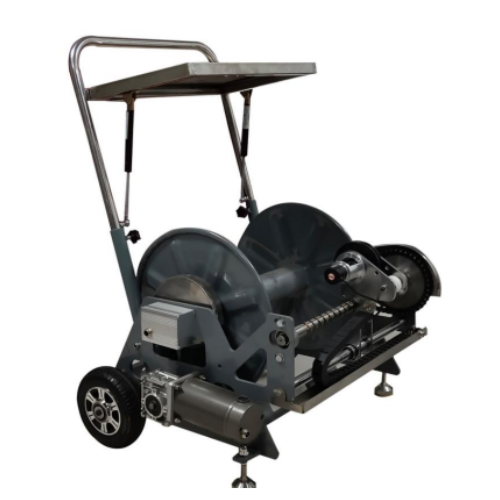

Automatic Cable Rolling Winch (Optional)
-
Cart-based system with pulley support
-
Built-in depth counter for precise measurements
Cart Based Mount (Optional)
-
Heavy-duty support frame
-
Ideal for stable, deep well deployments
Industry Applications
-
Engineering Geology & Hydrogeology
-
Geotechnical & Structural Inspections
-
Mining & Petroleum Exploration
-
Well Casing Integrity Checks
-
Water Quality & Contamination Analysis
-
Search & Rescue Missions
-
Underground Storage Tank & Pipeline Assessments
Additional Features
-
Measuring Depth Function
-
Reset Function
-
Wide-Angle Viewing
-
HD Image & Video Capture
-
Waterproof Ratings: IP68 (tube), IP54 (host)
-
Custom Logo Branding Available
Packaging & Delivery
-
Packaging Type: Durable Wooden Box
-
Package Dimensions: 56 × 65 × 96 cm
-
Gross Weight: 57kg
-
Warranty: 1-Year Manufacturer Warranty
