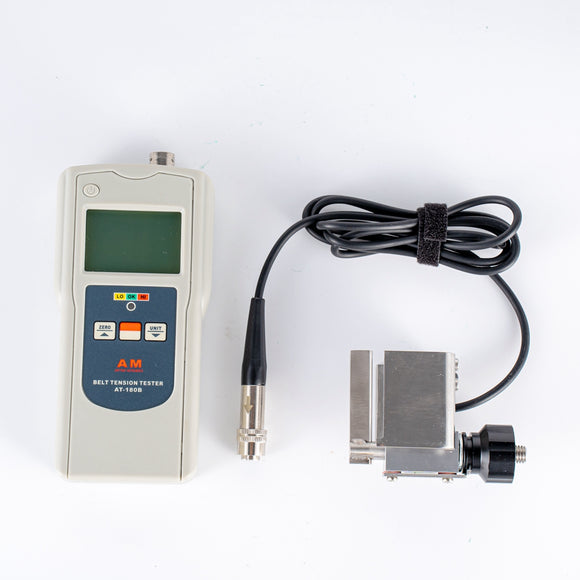

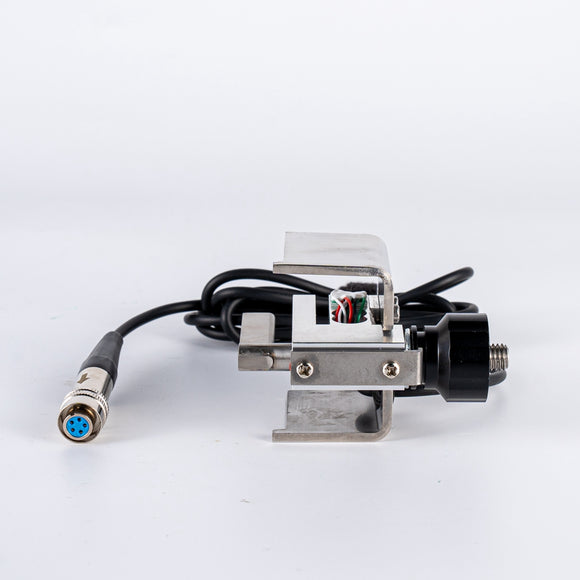

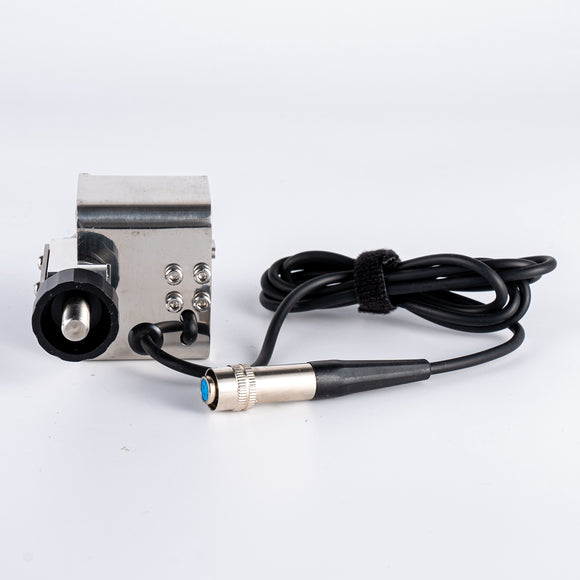

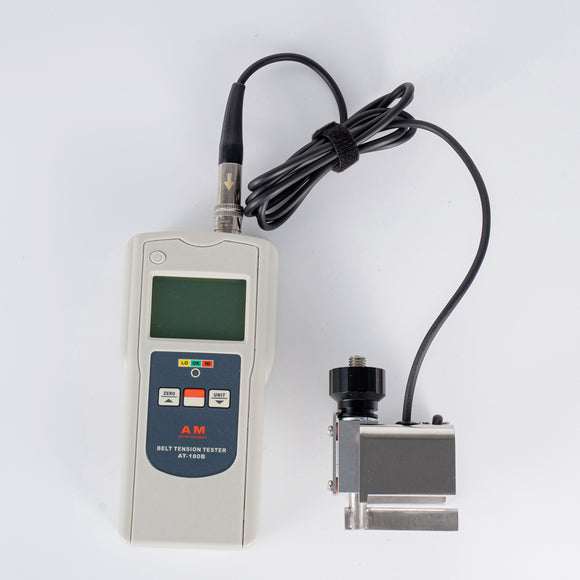

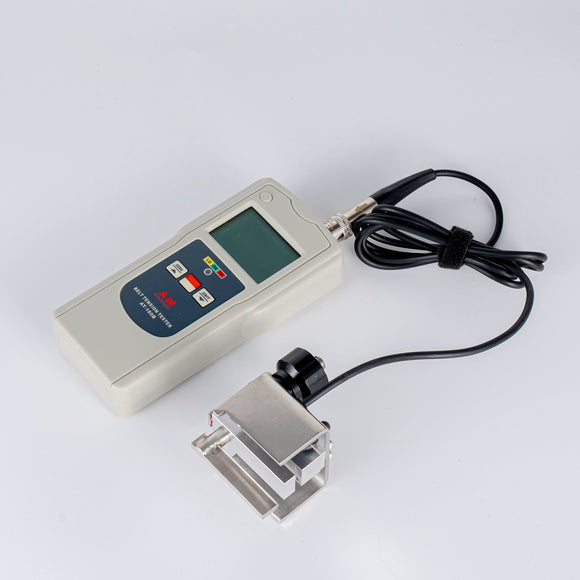

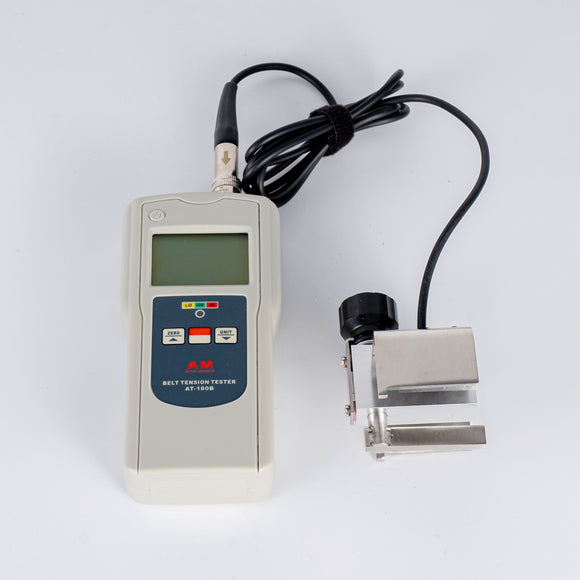

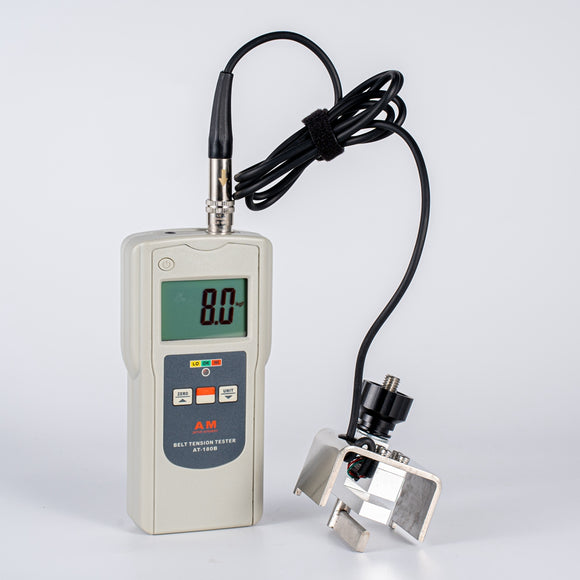

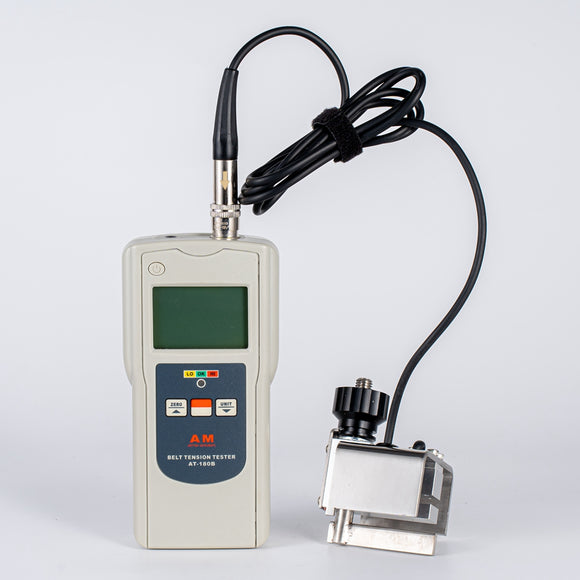

Belt Tension Meter
Description:
The Belt Tension Meter is primarily designed for automotive belt tension measurement but is versatile enough to measure and adjust the tension of ribbons, filaments, linear objects, net-like structures, and other wide objects. This device is suitable for use in the automotive, textiles, wire and cable, metal wire, plastic film, paper, printing, and film industries.
Features:
- Metric and imperial conversion
- Auto switch-off and manual shutdown
- Average value calculation function
- Low battery alarm indicator
- Maximum value storage
- Optional Bluetooth data output
Specifications:
- Measuring Range: 0750N, 0120lb, 077Kg, 0114Seems
- Accuracy: ≤ ±5%
- Belt State Indication: Low, OK, High
- Resolution: ± 1N (or other units)
- Overload Alarm: 750N (Newton)
- Maximum Load: 850N (Newton)
-
Working Environment:
- Temperature: 0°C ~ 50°C
- Humidity: <85% RH
- Size: 140×70×30 mm

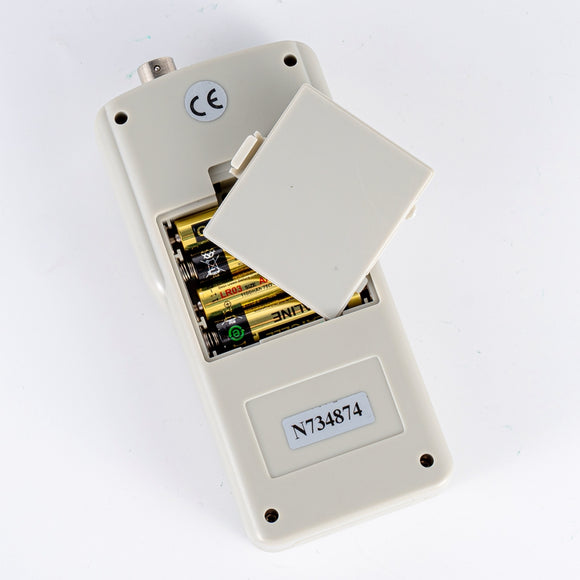

- Power Supply: 4x1.5v AAA (UM-4) batteries
- Host Weight: 130g (excluding batteries)
- Probe Weight: 230g
Included Accessories:
- Main Unit
- Test Block

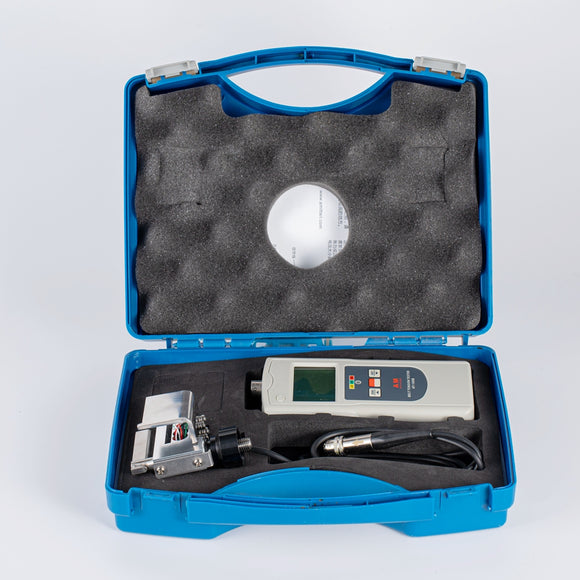

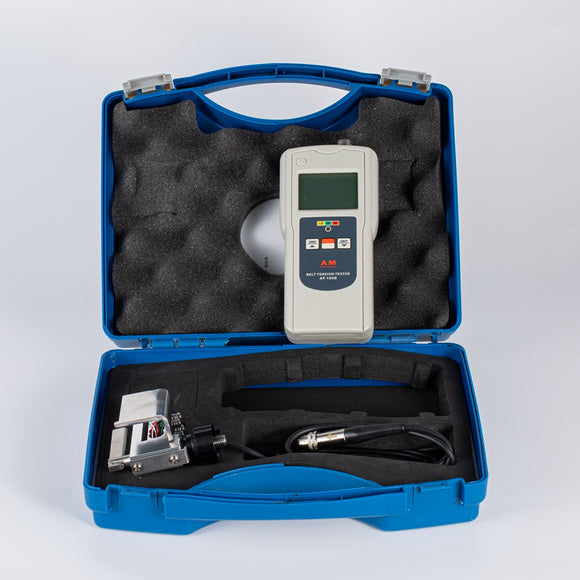

- Carrying Case
- Operation Manual
Optional Accessories:
- USB data output
- Bluetooth data output
