Acoustic Imaging Camera | 64 MEMS Microphones for Gas Leak & Partial Discharge Detection MPAI56

Product Description

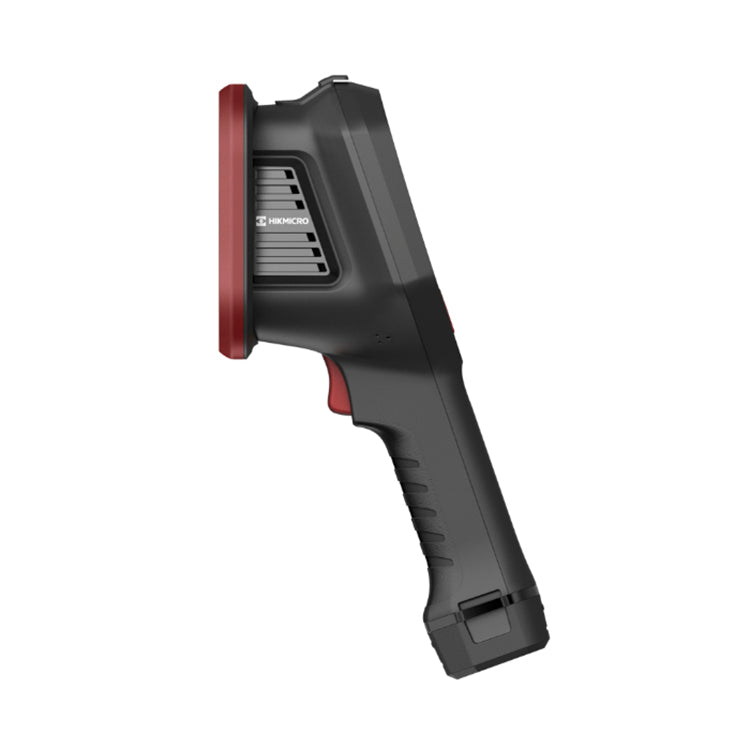

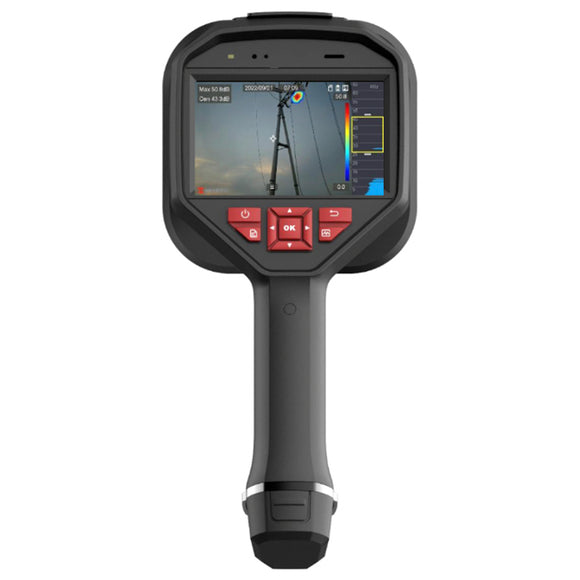

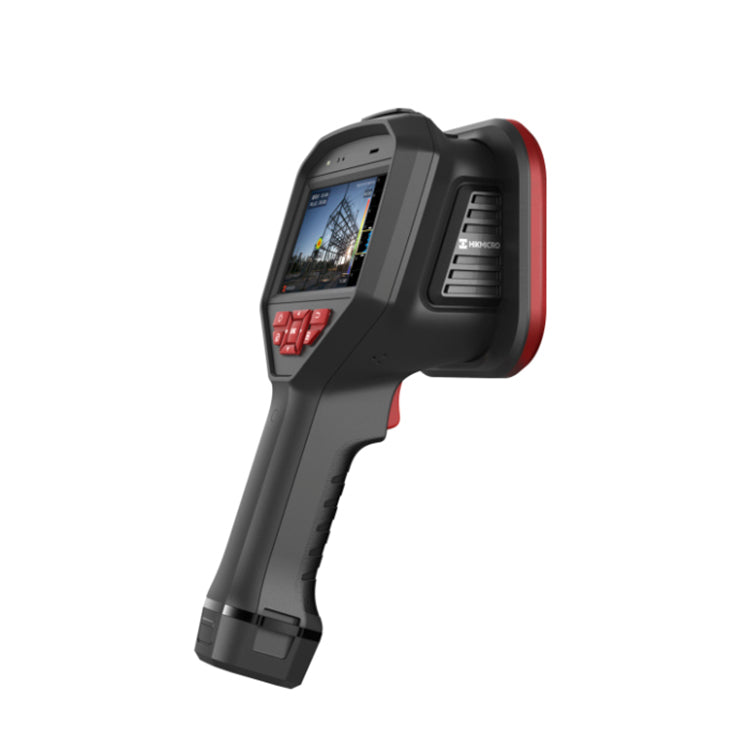

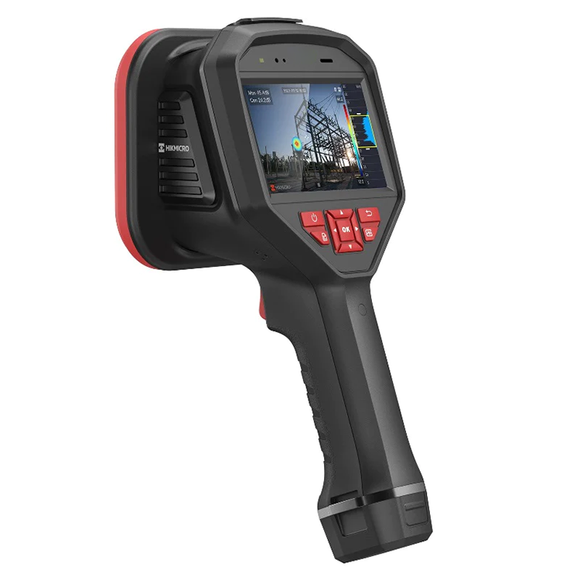

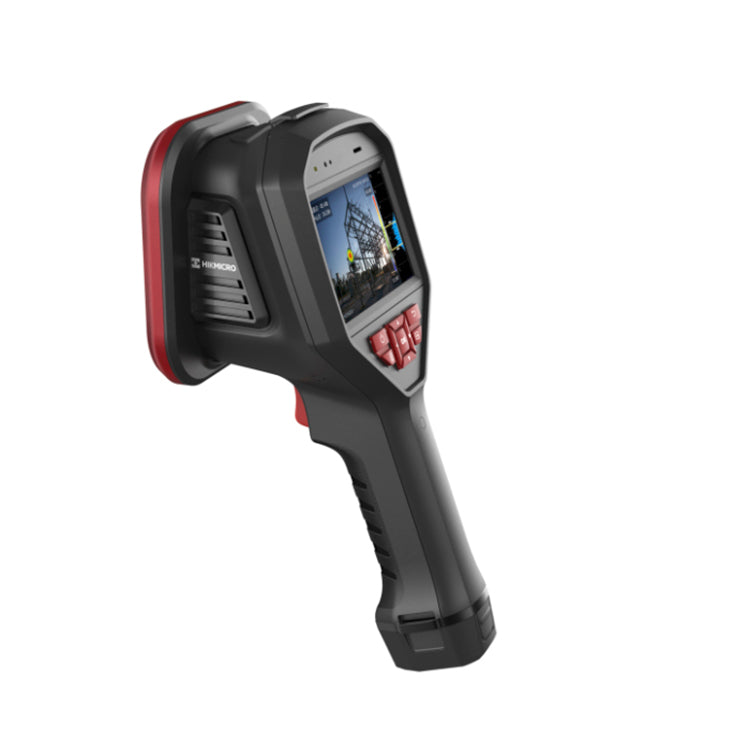

The HIKMICRO MPAI56 Acoustic Imaging Camera is a professional-grade solution for gas leak detection and partial discharge inspection. Featuring 64 low-noise MEMS microphones, it provides precise, real-time sound source localization across an adjustable bandwidth range of 0–96 kHz.

With its 4.3" LCD touch screen, 16x digital zoom, and support for 8 acoustic imaging palettes, the MPAI56 makes inspections faster and easier. It intelligently identifies corona, floating, surface, and particle discharges, while also estimating leak rate, leak level, and leak cost. Compact and lightweight at just 940g, the camera is portable and rugged, with IP54 protection and a battery runtime of up to 3.5 hours.

Ideal for industrial maintenance, electrical inspections, and predictive reliability programs, the MPAI56 helps minimize downtime, improve safety, and reduce operating costs.

Key Features

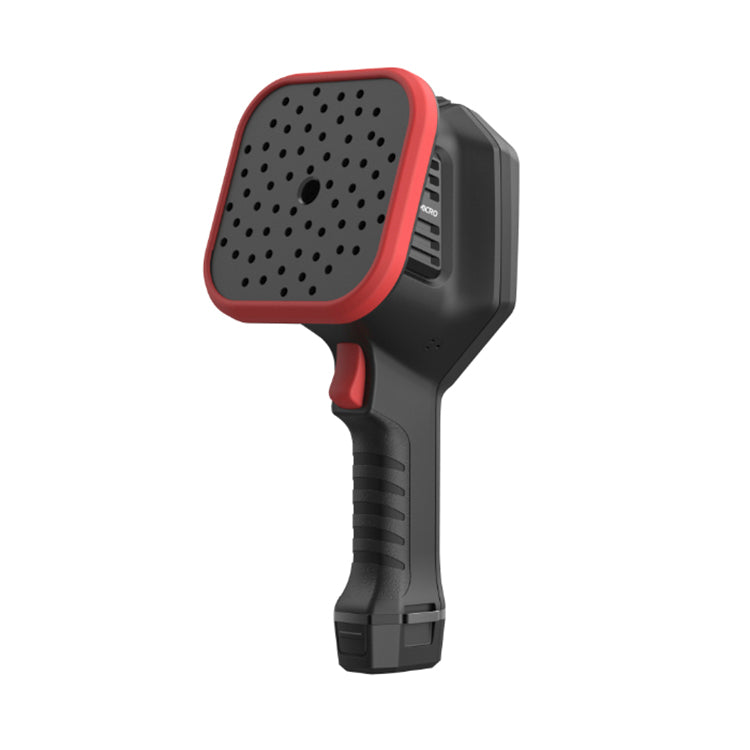

• 64 low-noise MEMS microphones for accurate acoustic imaging

• Adjustable bandwidth from 0–96 kHz with 192 kHz MEMS sampling rate

• Real-time leak detection with estimated leak rate, leak level, and cost

• Detects partial discharges: corona, particle, floating, and surface

• 4.3" LCD touch display (800 × 480 resolution) with manual/auto brightness

• 8 acoustic palettes including White-Black, Rainbow, Fusion, Ironbow, and more

• 16x continuous digital zoom for detailed inspection

• Long detection range: 0.3m to 150m

• Rugged design: IP54 protection, 1.2m drop-tested, shock/vibration certified

• Removable 64GB SD card (20,000 image storage, 60h video capacity)

• Photo, video, and audio recording with annotation support (text/voice)

• Connectivity: Wi-Fi, Bluetooth 4.1, USB-C, HDMI

• Lightweight: only 940g, easy to carry for field inspections

Technical Specifications

Acoustic

• Microphones: 64 low-noise MEMS

• Bandwidth: 0–96 kHz, adjustable

• Sampling Frequency: 192 kHz

• Acoustic Image Resolution: 800 × 480

• Frame Rate: 25 fps

• Detection Distance: 0.3 – 150 m

• Dynamic Range: -15 dB to >120 dB

• Leak Sensitivity: >0.008 l/min @6 bar (0.5m), >0.013 l/min @5 bar (1m)

• Discharge Detection Types: Corona, particle, floating, surface

Camera & Display

• Resolution: 13 MP

• FOV: 50.2° × 35.4°

• Display: 4.3" LCD touch screen, 800 × 480

• Zoom: 1.0x to 16.0x digital continuous

• Acoustic Palettes: 8 (White-Black, Black-White, Rainbow, Fusion, Ironbow, Red-Black, Rain, Blue-Red)

Storage & Communication

• Storage Media: 64 GB SD card (removable)

• Image Capacity: 20,000 images

• Video Capacity: 60 hours

• File Formats: JPG (images), MP4 (video), WAV (audio)

• Annotations: Text (max 255 characters), Voice (max 60s)

• Interfaces: Wi-Fi (2.4/5 GHz), Bluetooth 4.1, USB-C, HDMI-D

Power & Ruggedness

• Battery: Rechargeable & removable Li-ion, ~3.5 hours runtime

• Charging: 5 hours to full charge (USB 5V DC/2A)

• Ingress Protection: IP54

• Drop Test: 1.2 m

• Vibration/Shock: 2g IEC 60068-2-6 / 25g IEC 60068-2-27

• Operating Temp: -20°C to +50°C

• Storage Temp: -20°C to +60°C

• Humidity: <95% RH, non-condensing

Physical

• Weight: Approx. 940 g (2.07 lb)

• Dimensions: 292.2 × 127 × 110.7 mm (11.5 × 5.0 × 4.36 in)

• Tripod Mounting: UNC ¼”-20

Included Accessories

• Acoustic imaging camera (MPAI56)

• 2 × Li-ion rechargeable batteries

• Battery charging base

• Power adapter + 4 adapters

• SD card (64 GB)

• USB cable

• HDMI cable

• Hand strap

• MIC protective case

• Accessories bag

• Quick start guide

• Carrying case

Applications

• Gas leak detection in compressed air, gas, and vacuum systems

• High-voltage electrical equipment inspection for partial discharges

• Industrial facility maintenance and predictive monitoring

• Safety and reliability assurance in power plants and substations
